IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
EPON：IEEE 802.3 ah

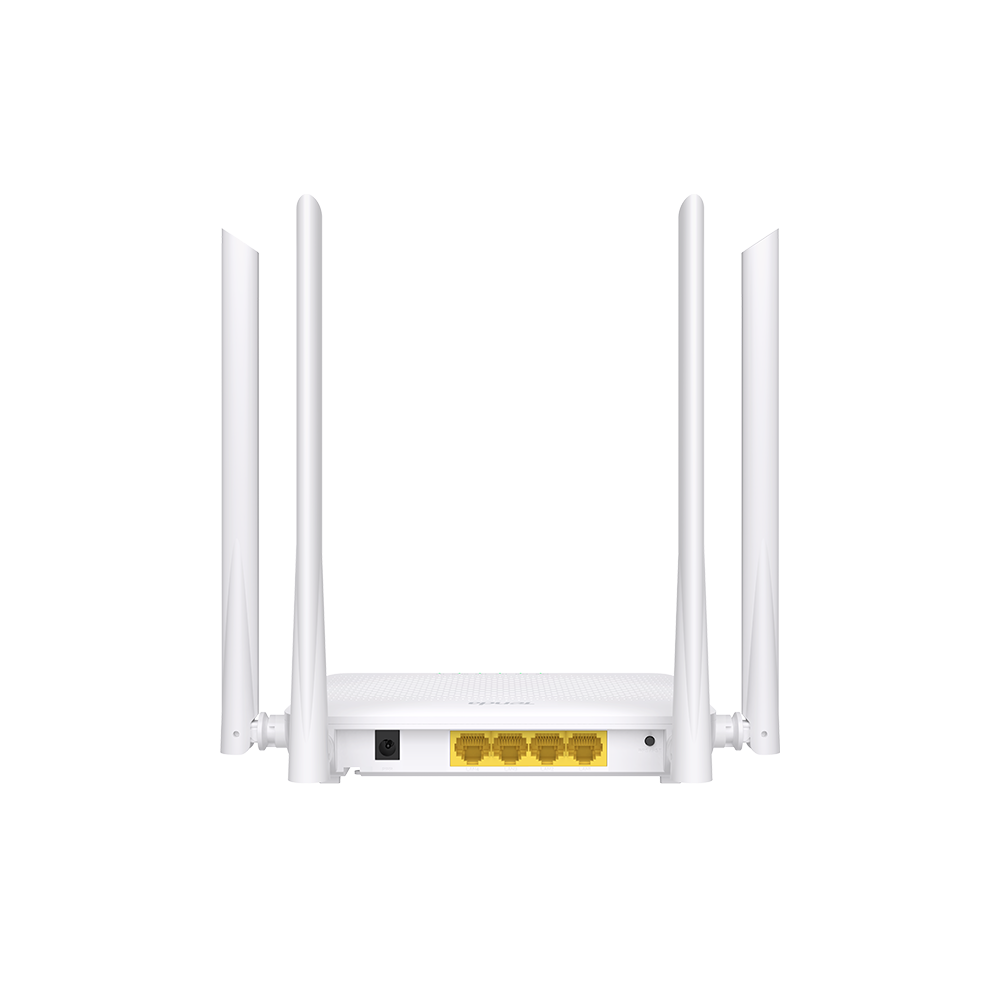

1 *SC/APC or SC/UPC （optional）Port
4 *1000Mbps RJ45 LAN Ports
1 *DC Power

PWR, PON, LOS, LAN, WLAN

1 *WPS/RST Button

Class B+

Transmit at 1310nm
Receive at 1490nm

20km Max

GPON: Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
EPON: Upstream 1.244Gbps Max, Downstream 1.244Gbps Max

220.8×141.9×31mm（L×W×H)

0.5~5dBm

-28~-8dBm

DC 12V /1.0A

≤12w

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

TR069, Internet, IPTV

Bandwidth Control

IPv4, IPv6

DHCP, Dynamic DNS , IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh

PPTP, L2TP, Ipsec Pass-through

ALG, IP Filter , Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ, DDOS

Radvd, DHCPv6, MLD Proxy, MLD Snooping

Ping, Ping6, Tracert, Tracert6

ACS, Connection request

2.4GHz & 5GHz

2.4G :20M/40M
5G: 20M/40M/80M

2.4G : CH1-CH13
5 G : CH36-CH48, CH149-CH165

4 * 5 dBi Antenna

WPS

11n 300M + 11ac 867M

2.4G: <20 dBm(EIRP)
5G: <23dBm(EIRP)

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering

Main SSID at 2.4GHz and 5GHz
4 Guest SSIDs Both At 2.4GHz and 5GHz

32 at both 2.4GHz and 5GHz

0°c ~ 45°c

-40°c ~ 70°c

10% ~ 95% （Non-condensing）

5% ~ 90% (Non-condensing)

1*HG10C, 1* Power adapter, 1* User manual, 1* RJ45 cable

CE，RoHS，Anatel
