IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

1.7GHz Quad-core CPU

256MB

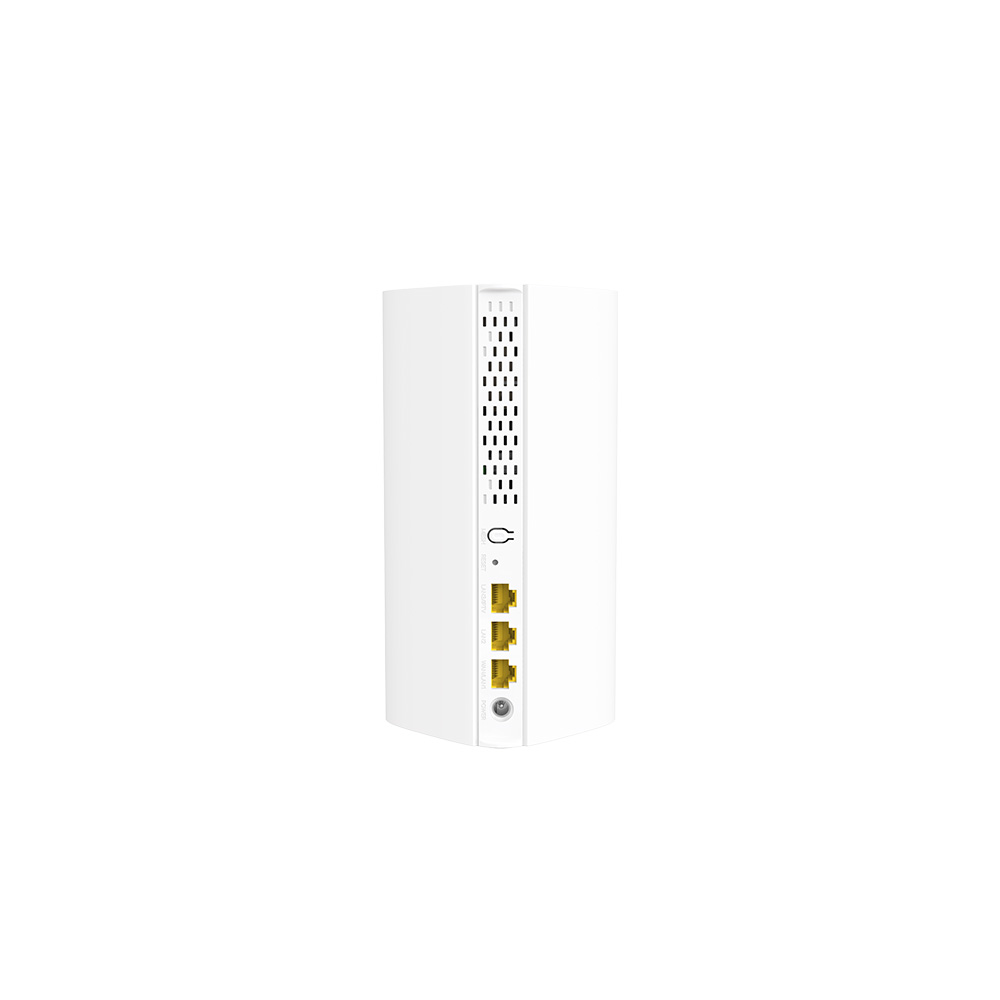

3 x 10/100/1000Mbps RJ45 ports per node

4 x 3dBi Internal antenna

1 x Reset Button
1 x MESH Button

Input: AC 100-240V, 50/60Hz
Output: DC 12 V ⎓ 1.5 A

1 x Tri-color LED Indicator(Green,Yellow,Red)

86x86x190mm (3.39 x3.39 x 7.48 in)

5GHz: IEEE 802.11ax/ac/n/a
2.4GHz: IEEE 802.11ax/n/b/g

2.4GHz: 574Mbps (802.11ax)
5GHz: 2402Mbps (802.11ax)

2.4GHz & 5GHz

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

Beam Forming
MU-MIMO
AP Steering
Band Steering
OFDMA
1024-QAM

WPA3-SAE/WPA2-PSK

PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia)

IPv4&IPv6

Router Mode,AP Mode

Client Filter
URL Filter
Time Limit

DHCP Server
DHCP Client List

Port Forwarding
DMZ Host
UPnP

Forbid TCP/UDP flood attack

Support manually setting DNS server

PPTP Server,
PPTP/L2TP Client

Ethernet Backhaul
IPv6
IPTV

Support App and web management
Guest Network
Firmware upgrade online

Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃

Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing

CE, FCC, RoHS

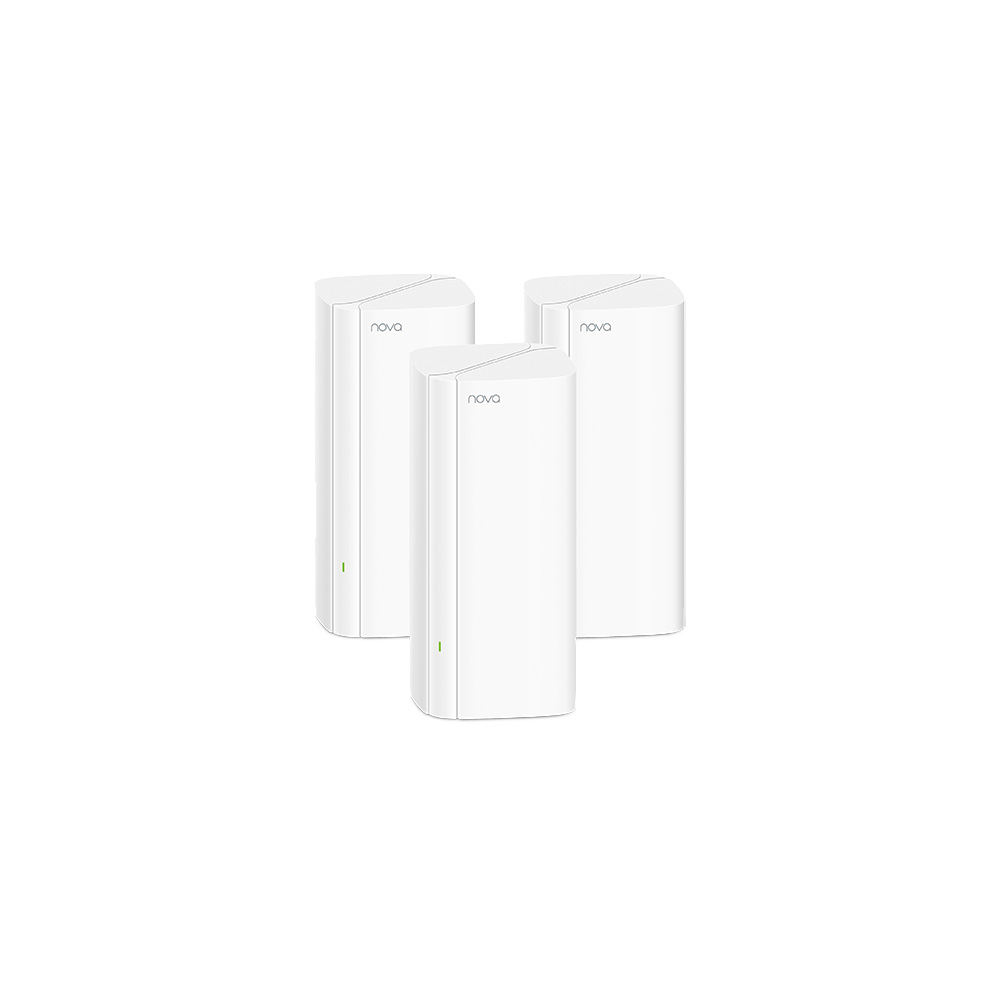

Mesh12X*3
Quick Installation Guide*1
Gigabit Ethernet Cable*1
12/1A Power Adapter*3
