IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x standards

10*Link/Act
1*Power

8*10/100Mbps RJ45 Ports(Data/PoE)
2*10/100/1000Mbps RJ45 Ports(Data)

Recommended: CAT5/5e UTP or better

0

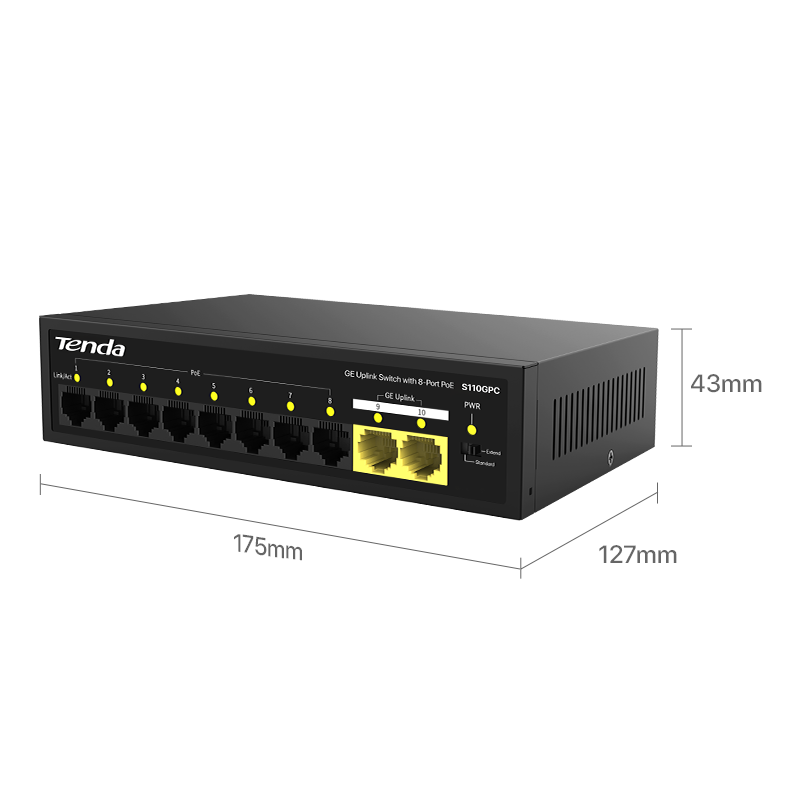

175*127*43mm

4KV

Store-forward

4.8Gbps

4.17Mpps

1Mb

2K

NA

Single port: AF: 15.4W, AT: 30W
Whole device: 65W

70W

AC：190－240V～ 50/60Hz
DC：53.5V /1.3A

Rack mounting : not support
Desktop mounting: support
Wall mounting: support

Operating temperature：0°C - 45℃
Storage temperature：-40°C - 70°C
Operating humidity：10% - 90%,non-condensing
Storage humidity：5% - 90%,non-condensing

CE

1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
Extend: The maximum transmission distance of the 1-8 ports of the switch can reach 250 meters, and all ports can communicate with each other.
