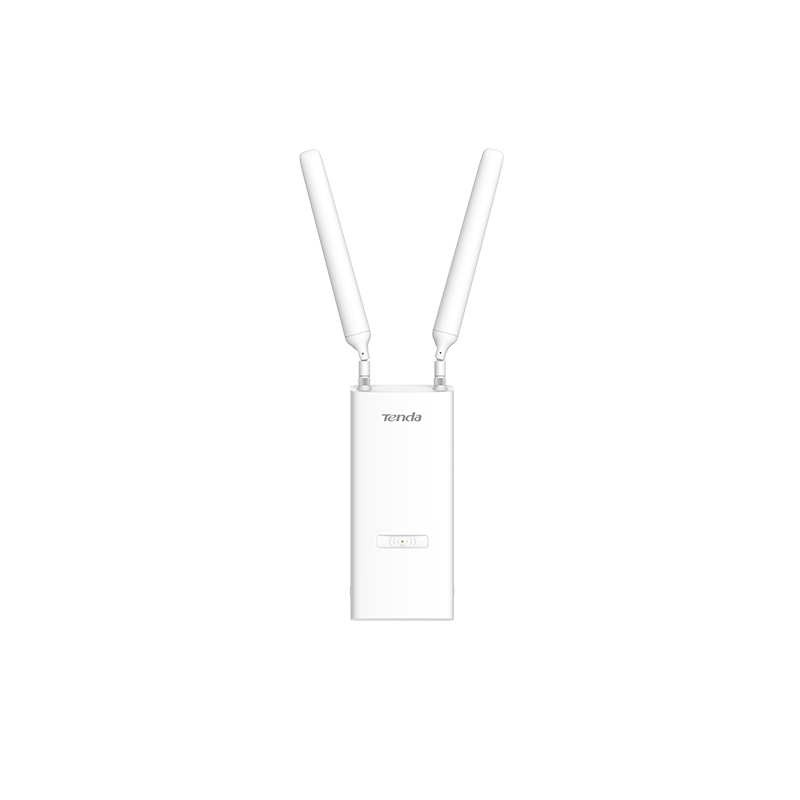

Outdoor APOAP3000 V1.0
OAP3000 V1.0

OAP3000 V1.0

Product Information

Model

OAP3000

Category

Pole Mounting and Wall Mounting

Dimension

194.7* 83* 42.1 mm

Hardware Specifications

Interface

1*Gigabit Ethernet Port

Button

1*Reset

LED indicator

1*SYS

Maximum Power Consumption

256

Power Supply

802.3at PoE，48-51V Passive PoE

Max. Number of Clients

16.8W

Recommended Clients

80

Antenna Gain

2.4GHz: 2*4dBi
5GHz: 2*5 dBi

2.4GHz maximum power

CE: <20 dBm ( EIRP)
FCC: <28 dBm

5GHz maximum power

CE: <23 dBm( EIRP)
FCC: <26 dBm

Reception Sensitivity

11b:-99dBm（1Mbps）
11a:-96dBm(6Mbps),-78dBm(54Mbps)
11g:-79dBm(54Mbps)
11n:20MHz:-96dBm(mcs0),-77dBm(mcs7)
11n:40MHz:-74dBm(mcs7)
11ax:20MHz:-67dBm(mcs11)
11ax:40MHz:-94dBm(mcs0),-64dBm(mcs11)
11ax:80MHz:-90dBm(mcs0),-59dBm(mcs11)
11ax:160MHz:-56dBm(mcs11)

Wireless Specifications

Frequency Range

2412MHz-2472MHz,5150MHz- 5350MHz, 5470MHz-5725MHz, 5725MHz-
5850MHz

Standard&Protocol

IEEE 802.11b/g/n/a/ac/ax

Maximum wireless speed

2.4GHz: 574Mbps
5GHz: 2402Mbps

Bandwidth

2.4GHz:20MHz/40MHz
5GHz:20MHz/40MHz/80MHz/160MHz

Software Specifications

Operating Mode

AP/Client+AP

Max. No. of SSID

2.4GHz: 8
5GHz: 4

Hide SSID

Supported

OFDMA

Supported

Beamforming

Supported

Fast roaming（802.11k/v/r）

Supported

WEP

Supported

WPA-PSK

Supported

WPA2-PSK

Supported

WPA

Supported

WPA2

Supported

WPA3-SAE

Supported

Access control

Supported

Adjustable power transmit

Supported

Automatic channel

Supported

AP isolation

Supported

Guest network

Supported

Connected clients control

Supported

RSSI Threshold

Supported

Weak signal terminal elimination

Supported

Prioritize 5 GHz

Supported

VLAN tagging for SSID

Supported

LED control

Supported

MU-MIMO

Supported

Diagnostics tool

Supported

Reboot at specified interval

Supported

Scheduled reboot

Supported

Device management

Local Web Management
Tenda CloudFi Cloud Management
Tenda CloudFi APP Management
Tenda Gateway Management（G300-F\G0-8G-PoE\G0-5G-PoE\G1）

System logs

Supported

Firmware upgrade

Supported

Reboot

Supported

Reset

Supported

Backup configuration

Supported

Restore configuration

Supported

Others

Default address

10.16.16.169
192.168.0.254

Operation Temperature

-30℃ ~ 60℃

Operating Humidity

10%~90% non-condensing

Storage Temperature

-30℃ ~ 70℃

Storage Humidity

5%~90% non-condensing

Product Accessories
