Network standards

Compliant with IEEE802.3/u/ab/bz/x

LED Indicator

Power
Link/Act

Interfaces

8*2.5GE RJ45 ports

Transmission media

Recommended: CAT5/5e UTP or better

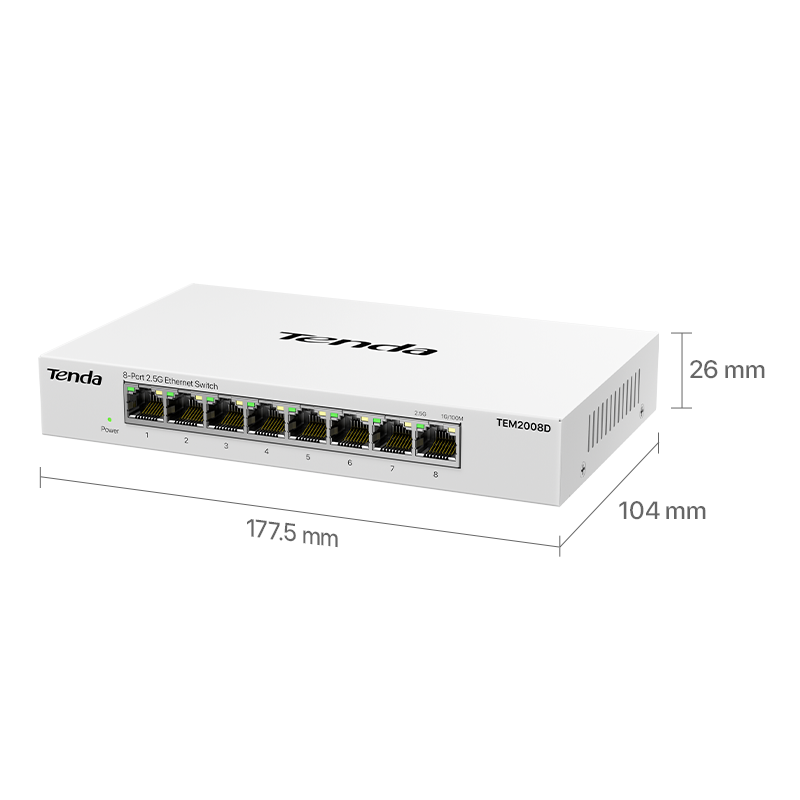

Dimensions

177.5mm*104mm*26mm

Material

Steel

Level of protection

Port: 6KV
Power Supply: N/A

Forwarding mode

Store-and-forward

Switch capacity

40Gbps

Forwarding rate

29.76Mpps

MAC address table

16K

Power method

100-220V AC 50/60Hz

Power consumption

Max:<9.8W

Mounting

Desktop mounting: support
Wall mounting: support

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certifications

FCC, CE, RoHS
