IEEE802.3，IEEE802.3u，IEEE802.3ab

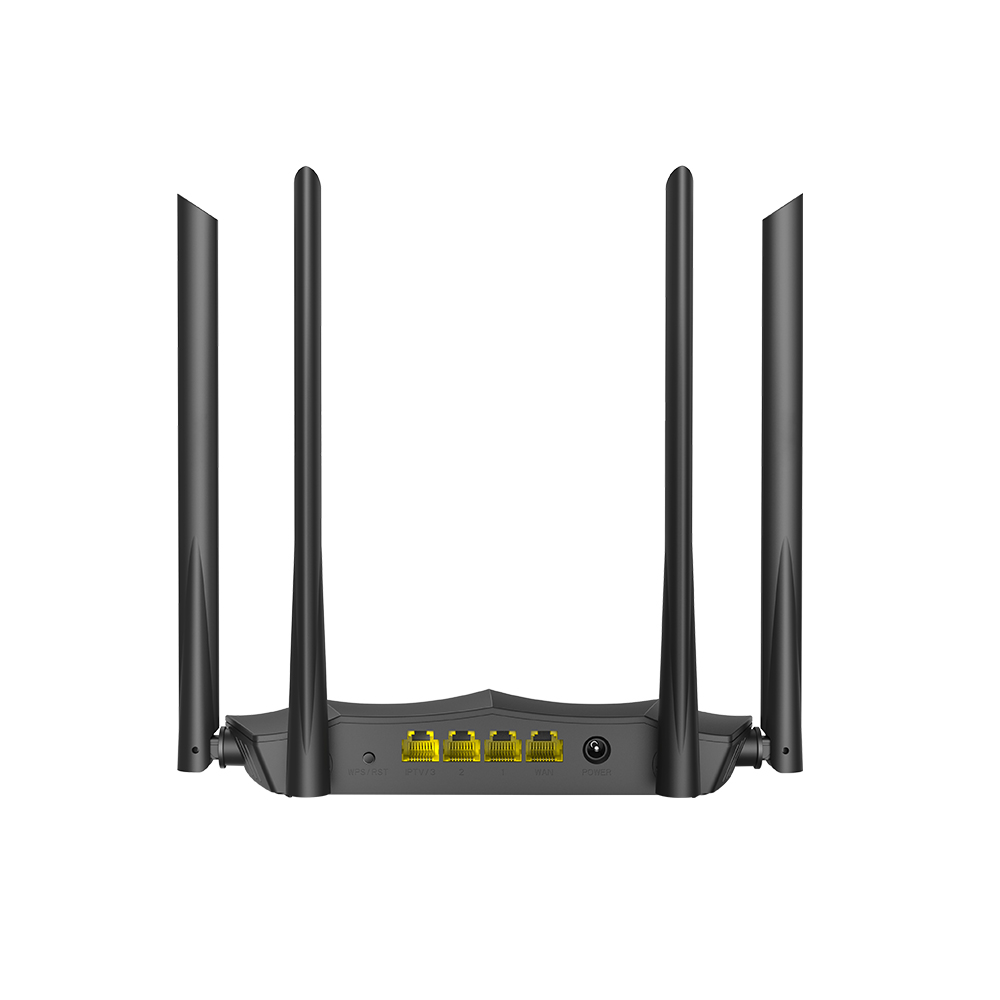

1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

4*6dBi external dual band antennas

1*WPS/Reset button

Input：AC 100-240V—50/60Hz
Output：DC 12V 1A

1*LED

200x127x33.6mm(L*W*H)

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

5GHz: 867Mbps
2.4GHz: 300Mbps

2.4GHz & 5GHz

CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable

PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server
DHCP Client List
DHCP Reservation

Port Forwarding
DMZ Host
UPnP

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

Support DynDNS, 88ip

IPsec pass through
PPTP pass through
L2TP pass through

PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

IPv6 Features Supported
Broadband management
MAC address clone
System Log
Backup & Restore configurations
Firmware upgrade from local

Operating Environment:0℃~40℃
Storage Environment:-40℃~70℃

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

CE，FCC，CCC

Wireless Router*1
Gigabit Ethernet Cable*1
Power Adapter*1
Installation Guide*1
