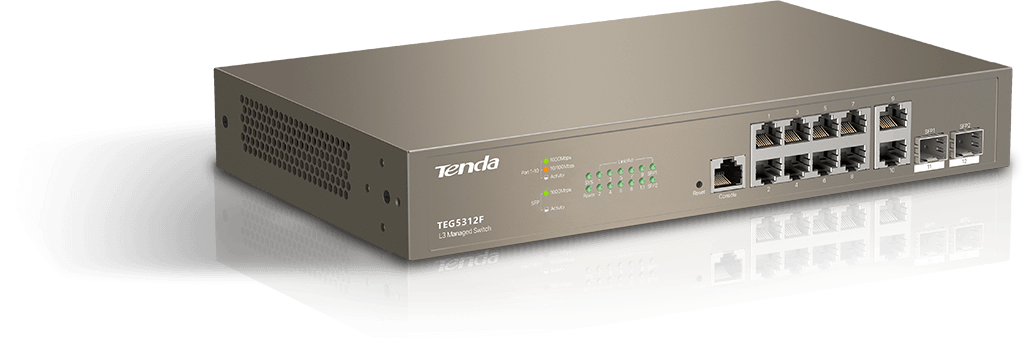

TEG5312F

L3 Managed Switch

Layer-3 Routing

6kV Lightning Protection

12M Large Buffer

DHCP Server

ACL

Smart QoS

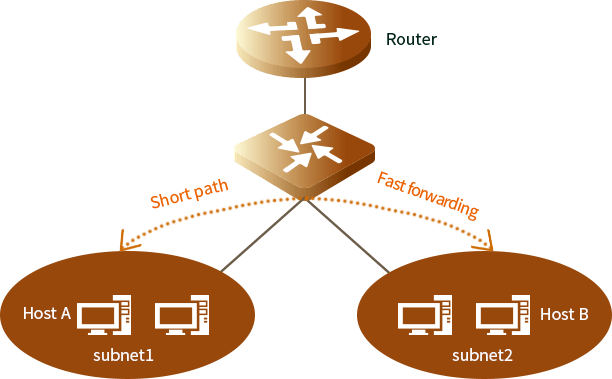

Layer-3 Routing Engine，High-Efficiency Fast Forwarding

Supports Layer 3 static routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to through a router, and the forwarding speed is faster!

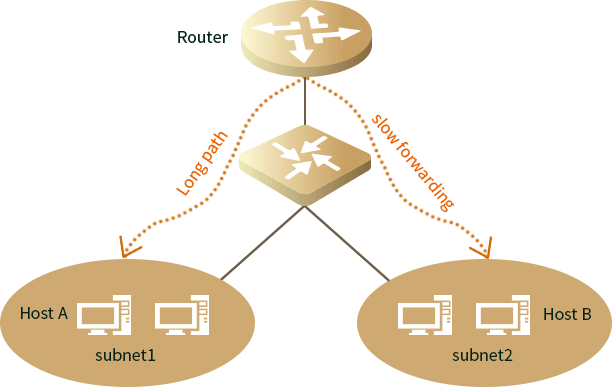

Solution upgrade

Layer-2 Switch

Layer-3 Switch

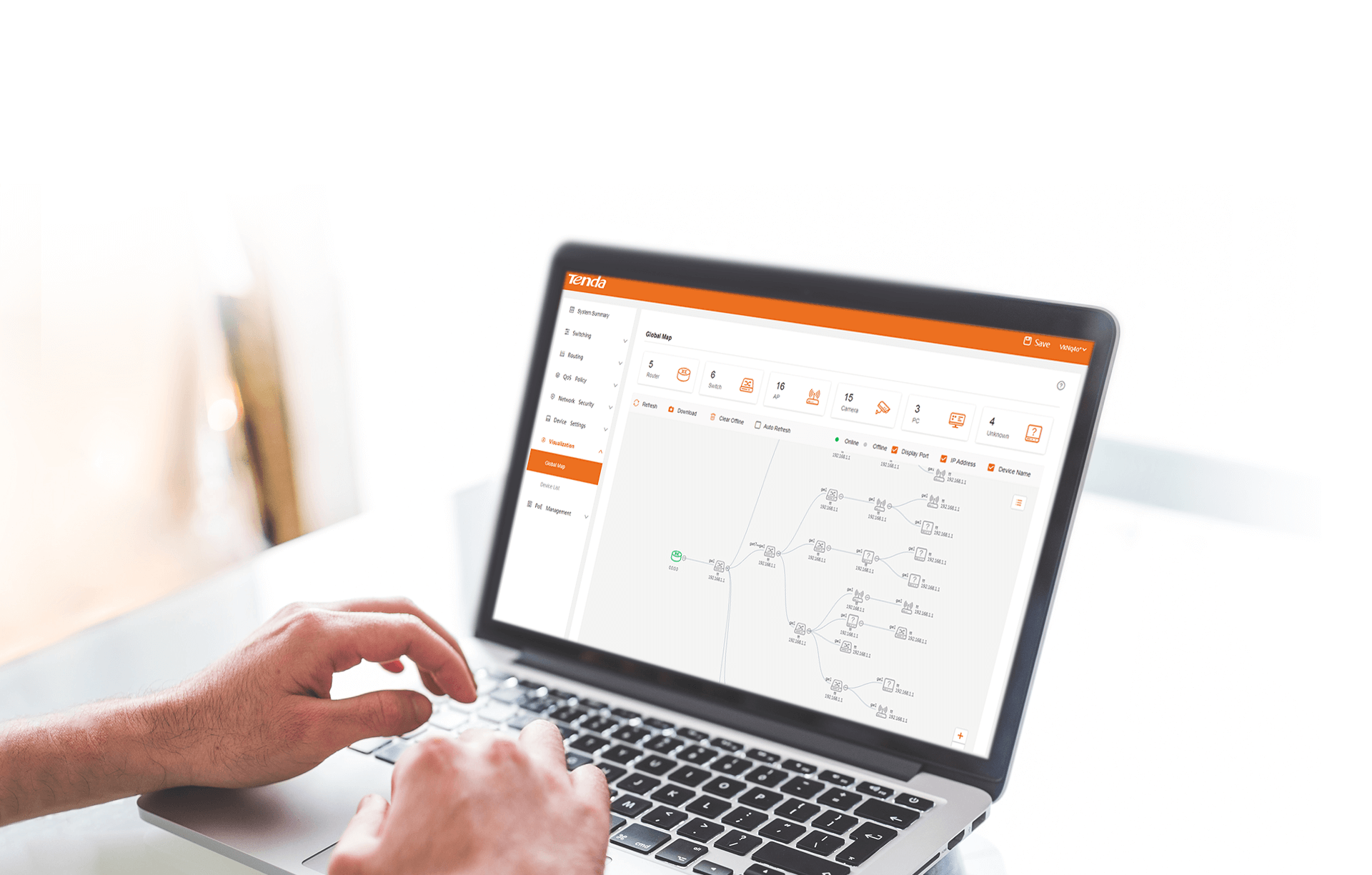

Map Visualization

It supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.

12M Large Buffer, No Fear of Burst Traffic

12M large buffer design, which is three times than other brands in the same gear.

Flexible QoS, Precise Traffic Control

The TEG5312F supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.

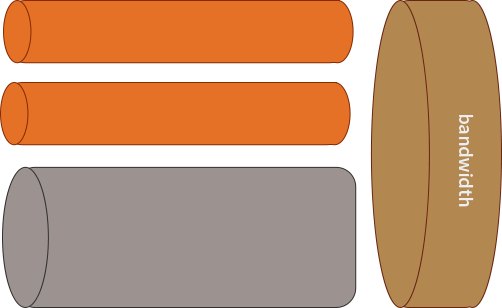

Without QoS

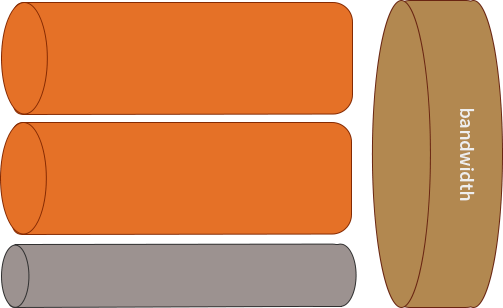

With QoS

Important data messages Important data messages Ordinary data messages

Important data messages Important data messages Ordinary data messages

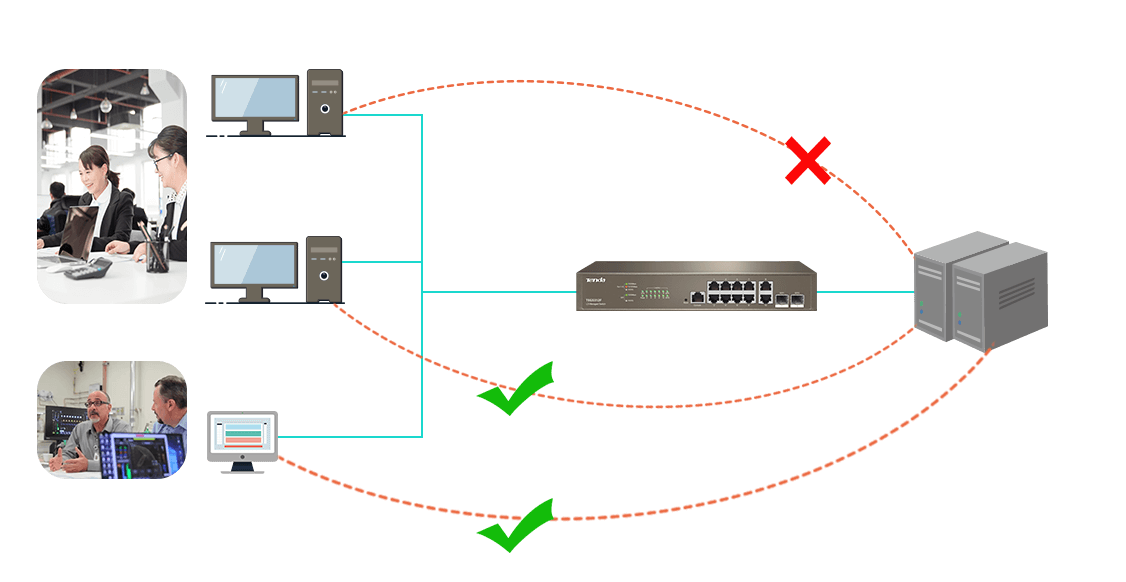

Supports Layer 2 And Layer 3 ACL，For More Secure Access

Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of vernment, medical and other units.

Marketing Staff A Marketing Staff B R & D Department Forbidden Not limited Allowed Servers

Multiple Attack Defenses, Multiple Securit Blessings

Support IP / MAC / ARP filtering / DoS attack protection, enable attack protection according to networking requirements, bring multiple layers of protection to user network security, and ensure network stability and failure-free.

More features

802.1Q VLAN

LLDP Neighbor Discovery

Port aggregation

IGMP Multicast

Loop Protection

Port mirroring

DHCP snooping

DHCP Relay
