8-ch

4MP

60 Mbps

1-ch, RCA (2.0 Vp-p, 10kΩ)

1-ch, 4K(3840×2160)/30Hz, 2560 × 1440/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

60 Mbps

1-ch, RCA (2.0 Vp-p, 10kΩ)

H.265+, H.265, H.264+, H.264

G.711A, G.711U, G726

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1

4-ch@1080P(30 fps)

Video, Video & Audio

Normal, Alarm

Instant, Channel, File, Tag

Up to 8-ch

USB device

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS

TDSEE (mobile phone), TDSEE STUDIO (PC)

Plug-in free live view : Chrome, Edge, Opera

8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports

IEEE 802.3at/802.3af

≤70 W

1 SATA 3.0 interface

Up to 10 TB capacity for each HDD

2 x USB 2.0

53 VDC, 1.2 A

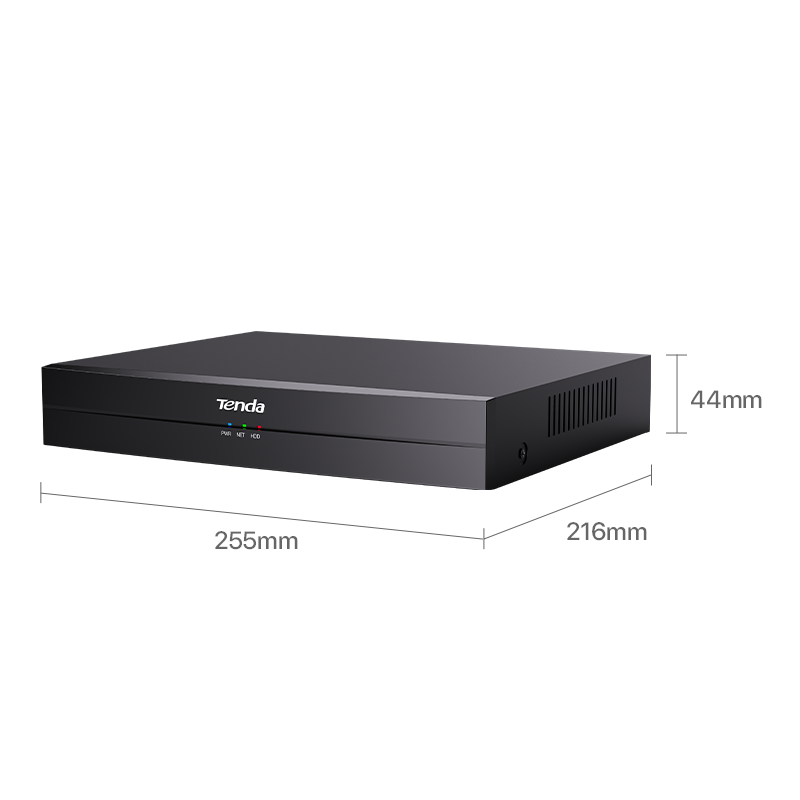

255 mm x 216 mm x 44 mm (10" × 8.5" × 1.9")

768g(1.69lb)

CCC, CE, FCC, RoHS

Desktop mounting, wall mounting

Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -30°C - 70°C (-22°F - 158°F)

Operating Humidity: 10% - 90% RH (non-condensing)
Storage Humidity: 5% - 95% RH (non-condensing)

1/3" Progressive Scan CMOS sensor

2560 x 1440

Built-in IR-CUT Dual Filters

3D DNR

Support

Support

2 infrared and white light combined illuminators

Up to 30 m/100 ft  (depending on environment)

Smart Mode, Full Color Mode, Black & White Mode

4 mm@F1.6

Horizontal FOV: 79.1°, Vertical FOV: 43.3°, Diagonal FOV: 94.9°

H.265+, H.265, H.264

2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720

640 × 360, 352 × 288

G.711A, G.711U, AAC

8 kHz

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection、Video Tampering

Built-in MIC

PoE: IEEE 802.3af

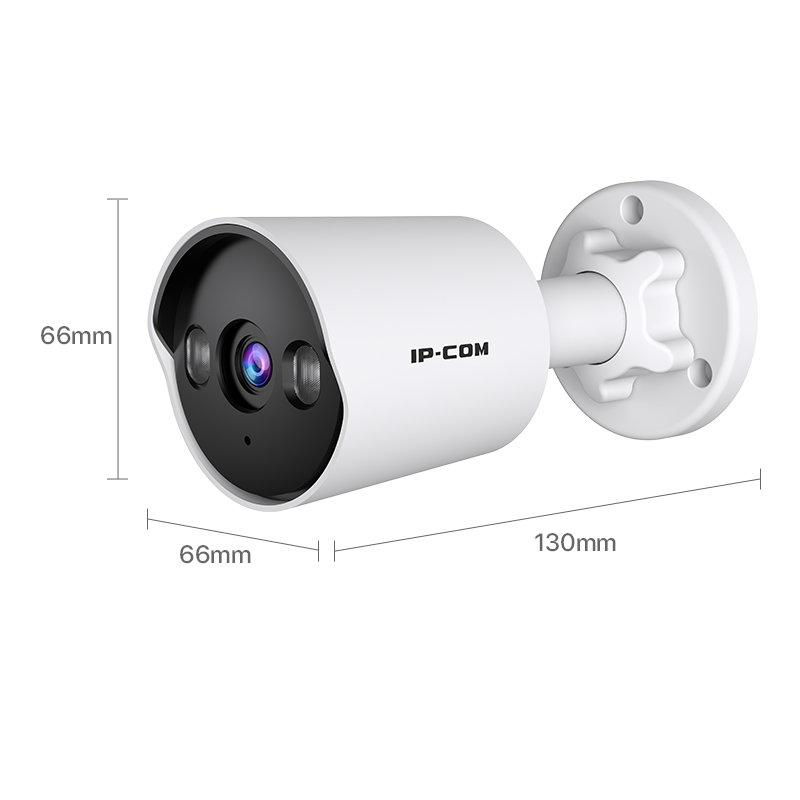

66mm x 66mm x 130mm (2.61" x 2.61" x 5.12")

324g(0.71lb)

IP67

Wall Mounting, Ceiling Mounting, Pole Mounting (Additional Bracket is Required)

CE, FCC,RoHS,UKCA

Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)

390*310*360mm

9.81kg

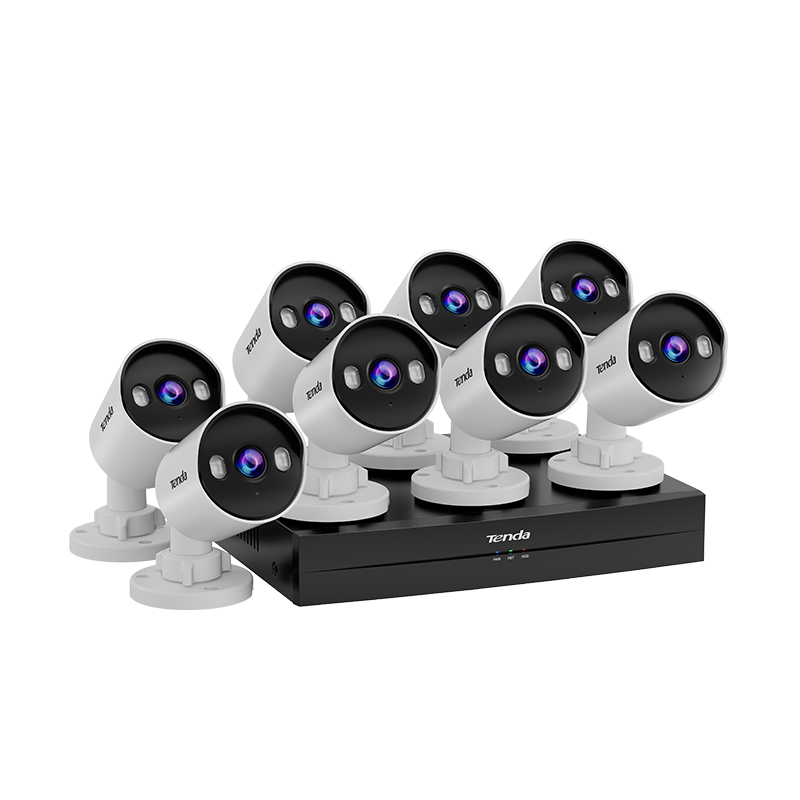

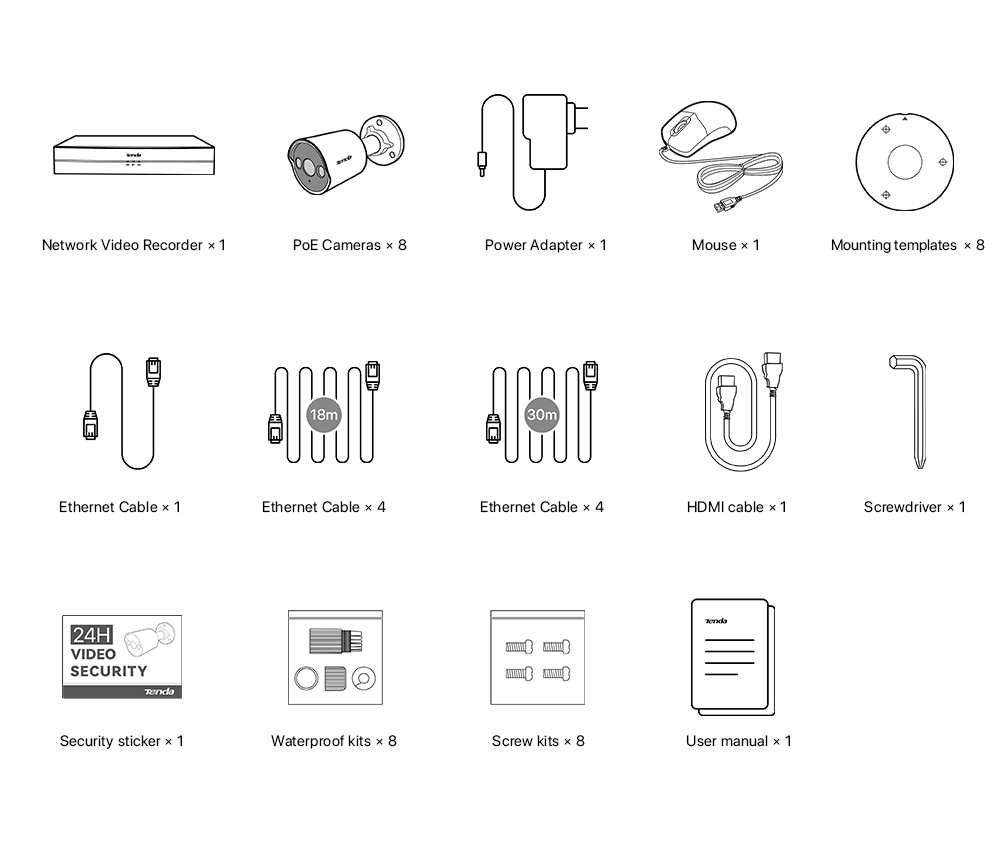

1× Network Video Recorder
8× PoE Cameras
1× Power adapter
1× Screw kit (for PoE NVR) 1× Mouse
8× Waterproof kits
8× Screw kits (for PoE cameras)
8× Mounting templates
1× Screwdriver
1× HDMI cable
1× Security sticker
1× 1 m Ethernet cable
4× 18 m Ethernet cables
4× 30 m Ethernet cables
1× User manual
