TEG1008M V4.0
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power, 8* Link/Act
Interfaces
8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better

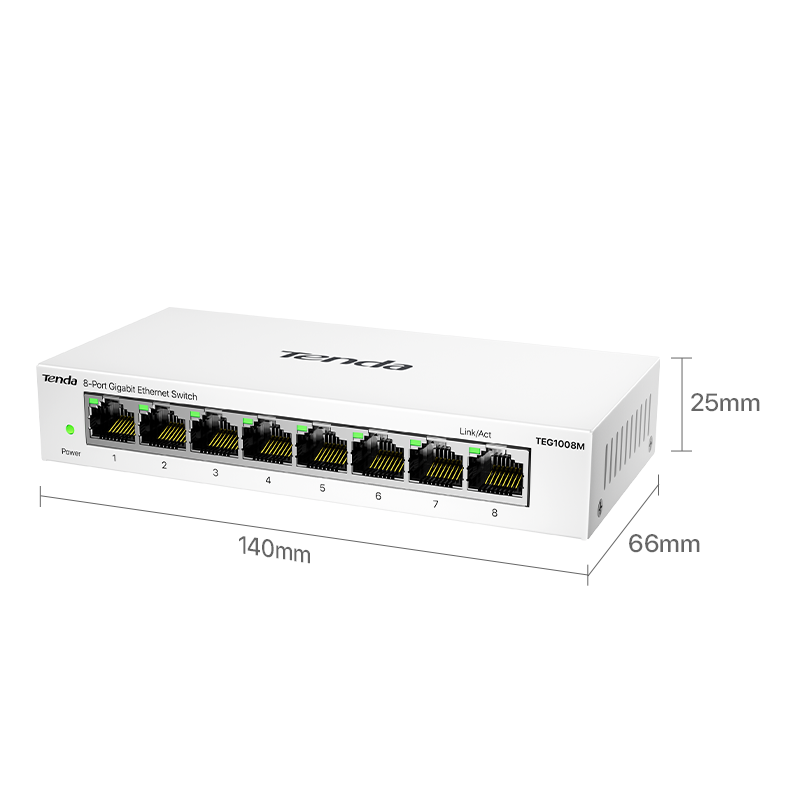

Dimensions
140.0mm×66.5mm×25.3 mm
Material
Metal
Level of protection
Lightning protection for ports: 4KV
Lightning protection for power: N/A
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
16Gbps
Forwarding rate
11.9Mpps
Buffer
2Mb
MAC address table
8K
Power method
Input: AC:100-240V; 50/60Hz DC:5-12V
Power consumption
Max:<2.5W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certifications
CE, FCC, RoHS
Funtions
plug-and-play

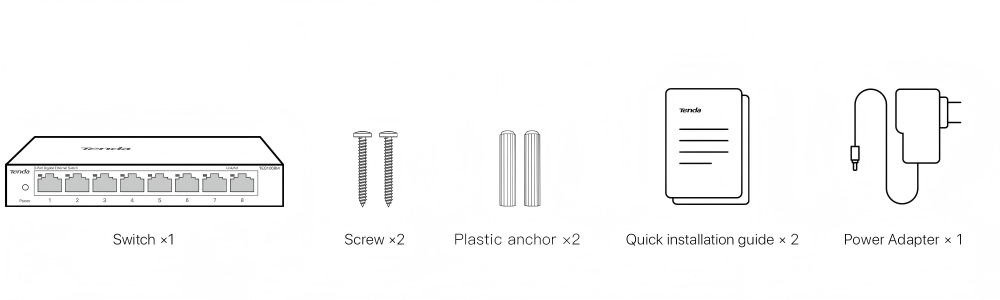

Product Accessories
