TEG1005D V5.0
Hardware
Network standards
IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab
LED Indicator
1 * Power，5 * Link/Act
Interfaces
5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Dimensions
100.0mmx64.0mmx23.0mm
Material
Metal
Level of protection
Lightning protection for ports: 4KV
Lightning protection for power: N/A
Forwarding mode
Store-and-forward
Switch capacity
10Gbps
Forwarding rate
7.44Mpps
Buffer
1Mb
MAC address table
2K
Power method
Input: 100-240V AC 50/60Hz
Output: 5V 0.6A (External power adapter)
Power consumption
Max:<2.5W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 40℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certifications
CE, FCC, RoHS
Funtions
plug-and-play

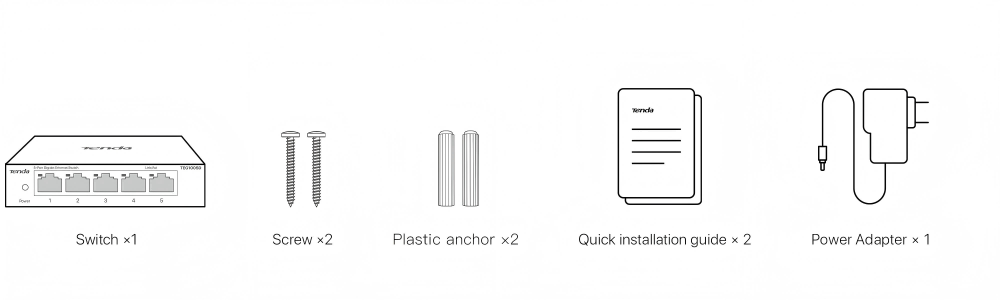

Product Accessories
.png)
