IEEE 802.3ah, IEEE 802.1Q, IEEE 802.10, IEEE 802.11, IEEE 802.3u, IEEE 802.3z

ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4

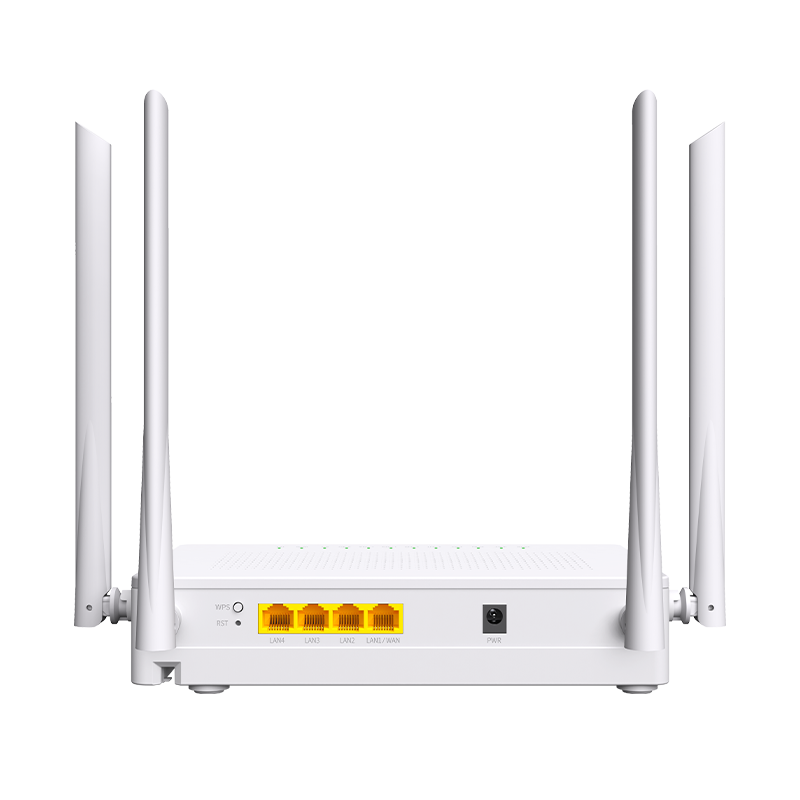

1*SC/APC （or UPC） Port, 4*1000Mbps RJ45 LAN Port, 1*TEL Port, 1*DC
Port

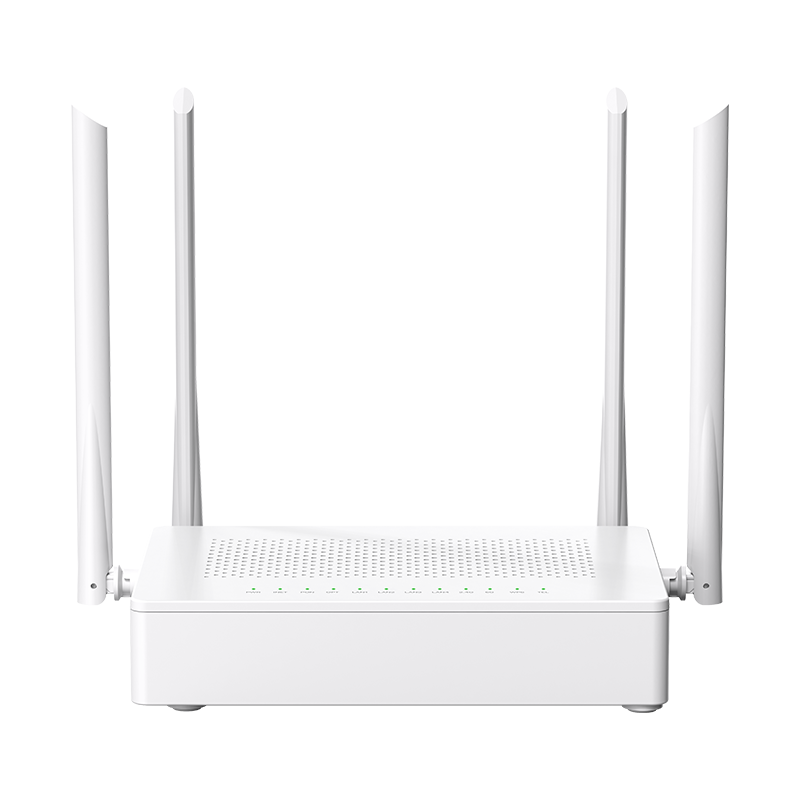

PWR、INET、PON、LOS、LAN1、LAN2、LAN3、LAN4、2.4G、5G、
WPS、TEL

1*RST＋1*WPS Button

Class B+

Transmit at 1310nm, Receive at 1490nm

20km Max

Upstream 1.244Gbps Max, Downstream 2.488Gbps Max

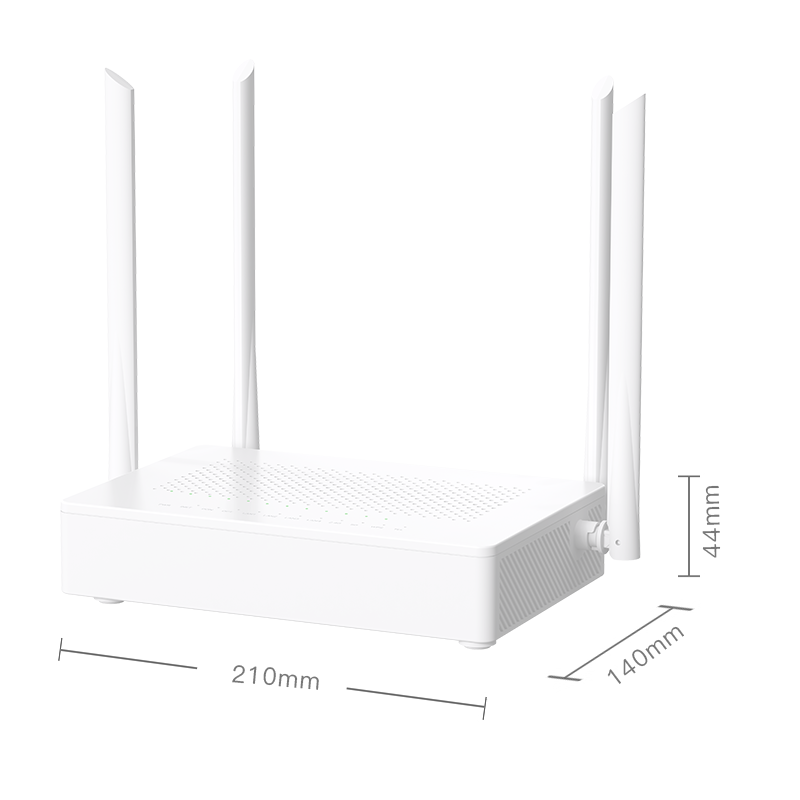

210mm×140mm×44mm(L×W×H)

0.5~5dBm

-28~-8dBm

DC 12V /1.5A

≤18W

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN
Connection

TR069, Internet, IPTV, VoIP

Bandwidth Control , QOS

IPv4, IPv6

DHCP, Dynamic DNS, IGMP Proxy, UPnP, Samba

PPTP, L2TP, IPsec Pass-through

DDOS,ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding，
DMZ

RADVD, DHCPv6, MLD Proxy, MLD Snooping

Ping, Tracert , Call emulation

ACS, Connection request

Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial,
Dial Plan , Codec, Hotline, DND, Alarm

IEEE 802.11 a/b/g/n/ac/ax

2.4G :20M/40M/80M, 5G: 20M/40M/80M/160M

2.4G : CH1-CH13 ;
5G : CH36-CH48, CH149-CH165

4 * 6 dBi Antenna

WPS Button, WPS LED

2.4GHz:574Mbps; 5GHz:2402Mbps

2.4G: <20 dBm(EIRP); 5G: <23 dBm(EIRP)

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics,
Beamforming, Band String, OFDMA, MU-MIMO, BSS Coloring

64/128-bit WEP, WPA / WPA2/ WPA3

Main SSID at 2.4GHz and 5GHz
4 Guest SSIDs both at 2.4GHz and 5GHz

32 at both 2.4GHz and 5GHz

0°C ~ 45°C

-40°C ~ 70°C

10% ~ 95% （Non-condensing）

5% ~ 90% (Non-condensing)

ONT; Power adapter; Network cable; Telephone line; Quick installation guide; Warranty certificate
