IEEE 802, 802.1q, 802.10, IEEE 802.11, 802.3u, 802.3z

ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4

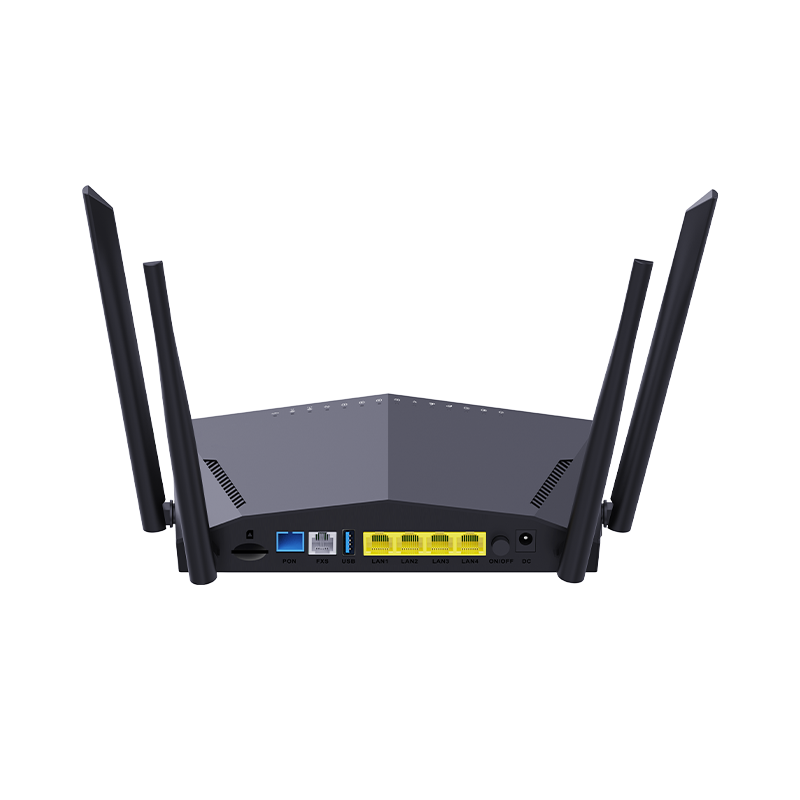

1*SC/APC PON Port, 4*1000Mbps RJ45 LAN Ports, 1*USB Port, 1*Voip Port, 1*DC Port
1 *Nano-SIM Card Slot

POWER, INET, PON, LOS, LAN1, LAN2 ，LAN3, LAN4, ,TEL,2.4G,5G, WPS, USB

1* Power On/Off Button, 1*WPS Button, 1*WLAN Button, 1 RESET Button ，1*LED Button

Class B+

Transmit at 1310nm, Receive at 1490nm

20Km Max

Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

190*124.9*26.5 mm

0.5~5dbm

-28~-8dBm

12V DC/1.5A

≤18W

Server, Client, DHCP Client List, Address Reservation, DHCP relay

PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN connection

TR069, Internet, IPTV, VOIP

Bandwidth Control

PPTP, L2TP, IPSec Pass-through

2.4GHz & 5GHz

4 * 5dBi Antenna

11n 300M + 11ac 867M

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption, Wireless MAC Filtering

Operating Temperature: 0 ℃~45 ℃

Storage Temperature: -40 ℃~70 ℃

Operating Humidity: 10%~90% (non-condensing)

Storage Humidity: 5%~90% (non-condensing)

1*HG10-4G,
1*Power Adapter,
Quick installation Guide,
1*RJ45 Cable,
1*RJ11 Cable

CE, RoHS
