HG1-CATV
Hardware
PON Standards
ITU-T G.984.x and IEEE802.3ah

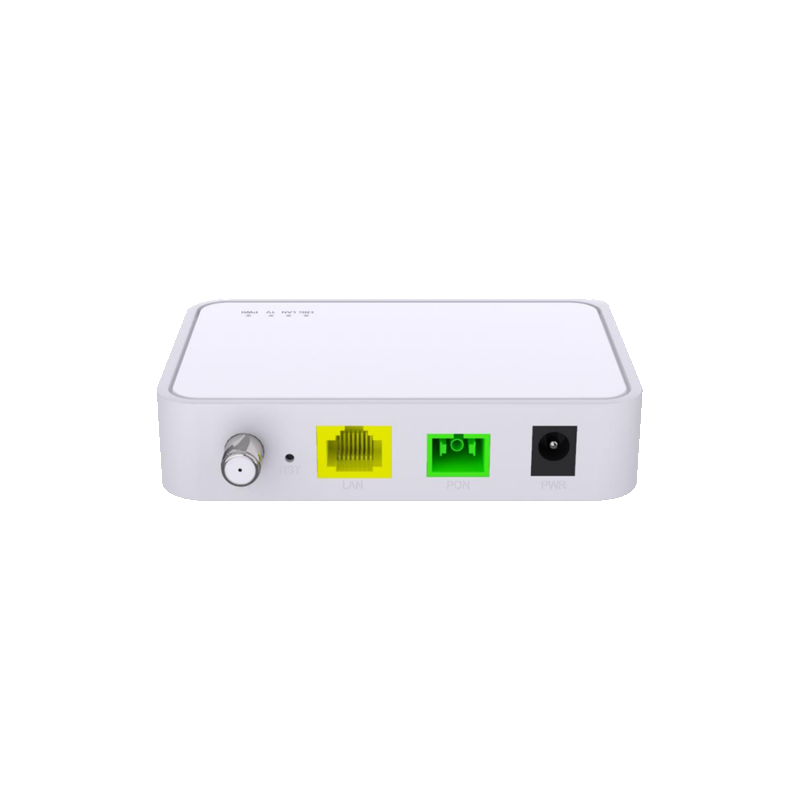

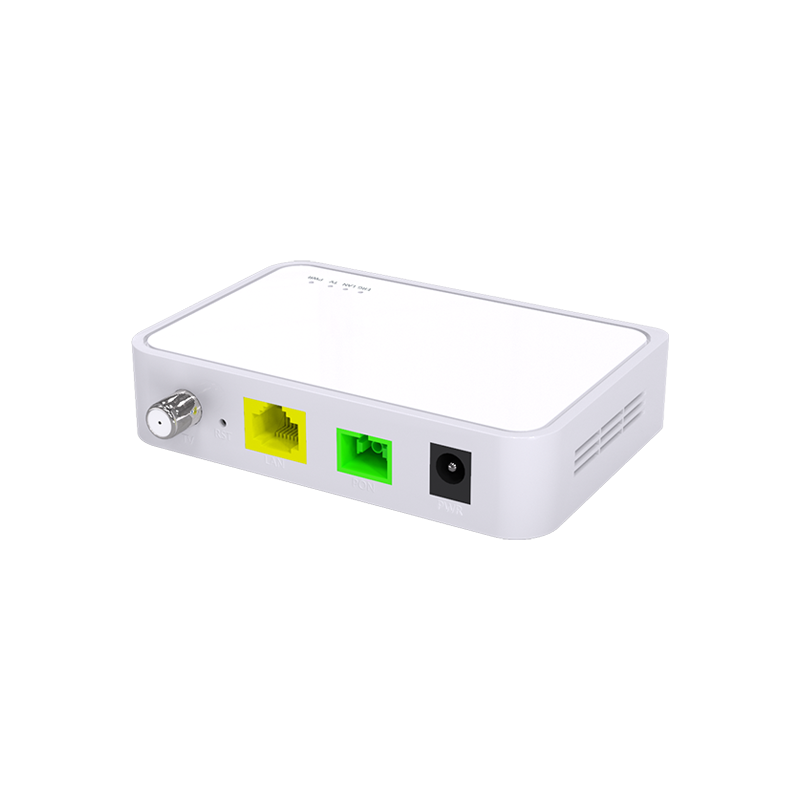

Interfaces
1xSC/UPC or 1xSC/APC (optional)1x 10/100/1000Mbps LAN port 1x RF port
Button
Reset Button
Transmission Distance
20Km Max
Bandwidth
GPON:Upstream rate 1.244GbpsDownstream rate 2.488Gbps
EPON:Upstream rate 1.25GbpsDownstream rate 1.25Gbps

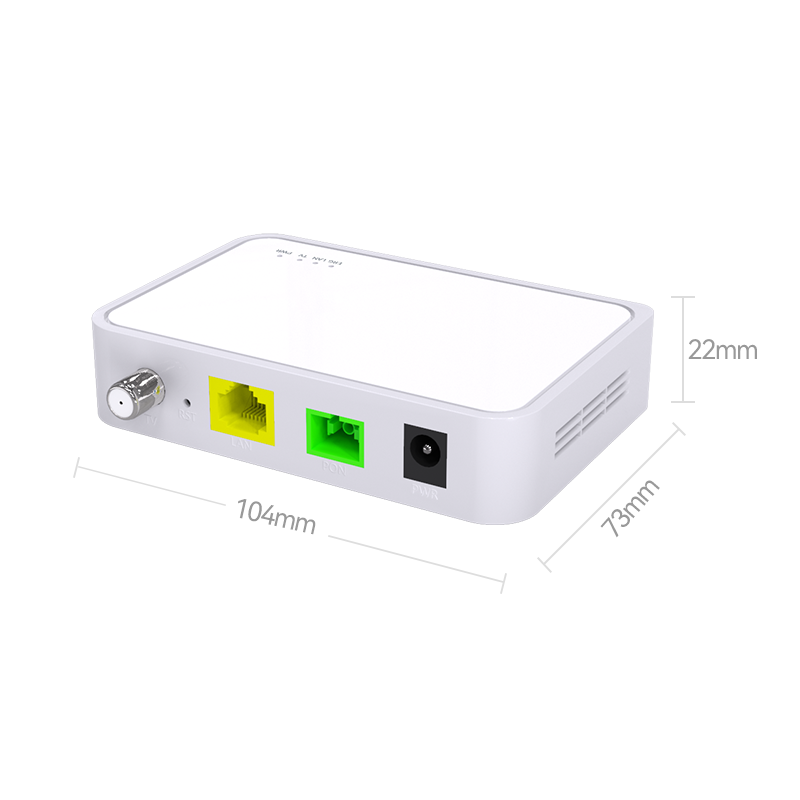

Dimension
104*73*22mm(length*width*height)
TX Power
1~3dBm（1310nm）
RX Power
<-28dBm（1490nm）
External Power Supply
DC 12V 0.5A
Power Consumption
≤ 4W
Software
DHCP Server
Server, Client, DHCP Client List, Address Reservation
WAN Connection
Dynamic IP/Static IP/PPPoE
Quality Of Service
Bandwidth Control
Environment
Operation Temperature
-10°C~50°C
Storage Temperature
-40°C~70°C
Operating Humidity
10%~90%, non-condensing
Storage Humidity
5%~95% non-condensing
Others
Package Contents
1 *XPON ONT
1 * Quick Installation Guide
1 * Power Adapter
Certification
CE, FCC，RoHS
