IEEE802.3, IEEE802.3u, IEEE802.3ab

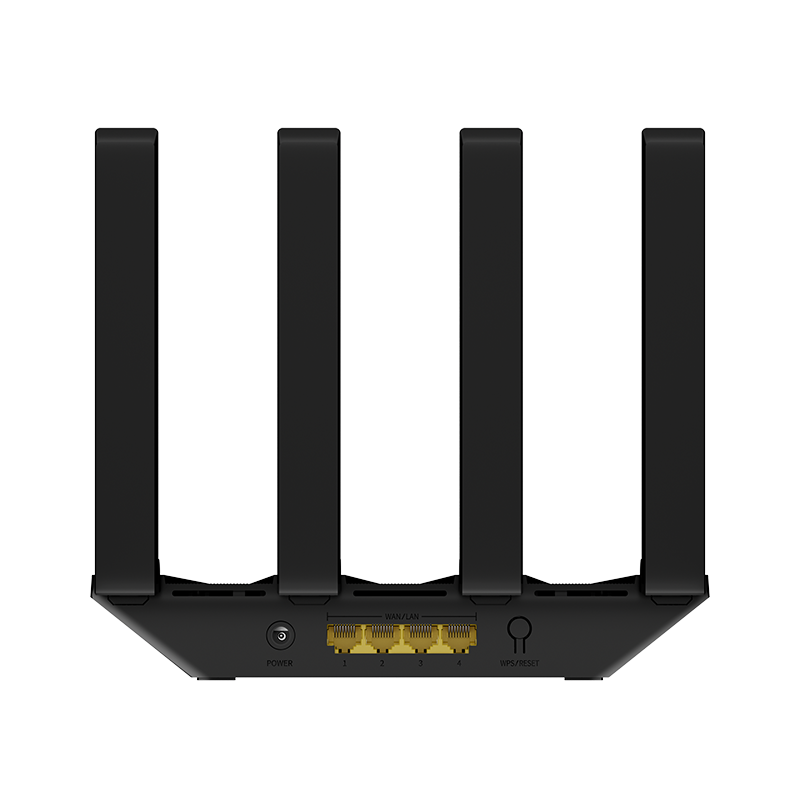

1× Gigabit WAN Port
3× Gigabit LAN Ports

4* High gain external antennas
5GHz:7dBi,2.4GHz:5dBi

1*WPS/Reset button

Input：AC 100-240V~50/60Hz
Output:DC 12V⎓1A

1* LED

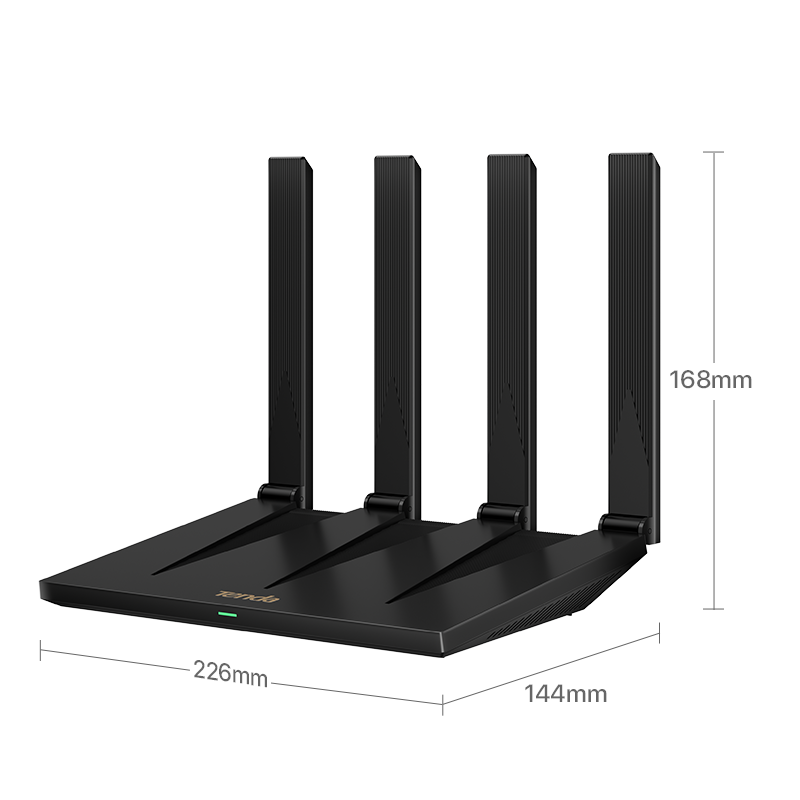

226*144*168mm （L*W*H)

IEEE 802.11ax/ac/n/a 5GHz
IEEE 802.11ax/n/b/g 2.4GHz

5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

SSID broadcasting and hiding
MU-MIMO
Beamforming signal directional transmission technology
160MHz
OFDMA
1024-QAM

WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up)fast encryption

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi,Other Special ISPs (VLAN/IPTV)

IPv4&IPv6

Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）

Client Filter
URL Filter
Time Limit
AI Voice Control

DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation

Port Forwarding, DMZ Host, UPnP

ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN

DynDNS, no-ip,oray,88ip

IPSec Transparent Transmission
PPTP Transparent Transmission
L2TP Transparent Transmission
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
Open VPN Client
WireGuard VPN Client

Wi-Fi+(Mesh System)
EasyMesh
IoT Network
Wireless Access Binding
NFC Stickers
AI Voice Parental Control
Auto Upgrade Firmware
Guest network
Smart diagnosis
Smart LED on/off
Wi-Fi timer on/off
WAN/LAN port auto-sensing

Unify 2.4GHz &5 GHz
IPTV
IPv6
Bandwidth Control
MAC Address Clone
Smart Power Saving
Black list and White list
Support App and web management
Remote Web Management
Bandwidth Control
MAC Address Clone
Smart Power Saving
Black list and White list

Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃

Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing

CE、FCC、RoHS、UKCA

Wi-Fi Router *1
RJ45 Ethernet Cable*1
NFC Sticker*1
Power Adapter*1
Quick Installation Guide*1
