1 Gigabit Ethernet Port

2 External Antennas

1 WPS&Reset Button

1 System LED

Built-in power supply
Input Power：100-240V~50/60Hz
Output: DC 12V⎓1A

86mm*37.5mm*196mm

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable

Range Extender
Access Point
Mesh Networking Mode
Router Mode
Hotspot Signal Amplification Mode (WISP)

Unify 2.4 GHz & 5 GHz
SSID broadcasting and hiding
Access Control（Black list and White list）
IoT Network
Smart LED on/off
Automatic upgrade during idle time
Firmware upgrade online

EasyMesh-Compatible
Tenda Wi-Fi+Mesh

Tenda WiFi APP
Web-Based Management

http://re.tenda.cn

CE、FCC、RoHS

US
EU
UK
AU
BR

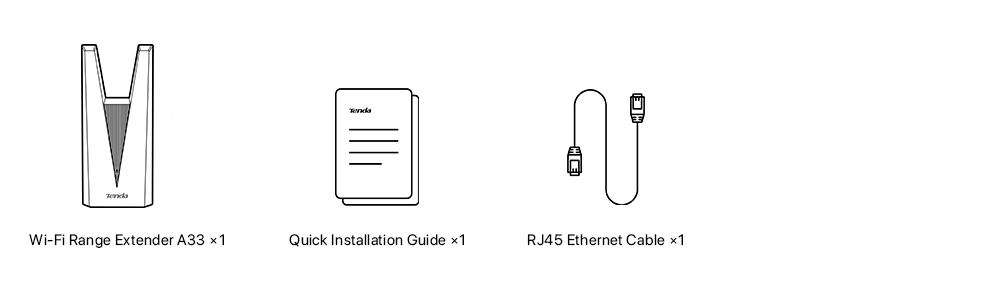

Wi-Fi Range Extender A33
Quick Installation Guide
RJ45 Ethernet Cable

Firmware upgrade, Restore factory settings, Login password, and Reboot

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
