Simple Yet Cost-effective Solution for Expanding SMB & Campus Network

TEF1016D

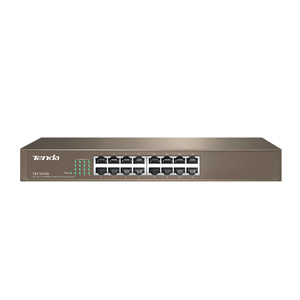

Tenda TEF1016D 16-Port Fast Ethernet Desktop/Rackmount Switch

	What It Does The Tenda TEF1016D 16-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to twenty three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use.
	Main Features >> 16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection >> Up to 200Mbps full duplex bandwidth on each port >> Sturdy metal case ideal for years of dependable use >> 4K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission >> Support 6000V lightning protection for power supply >> Support rack mounting >> Support Plug and Play，without any configuration

Space-saving Design for Desktop & Rack Installation

100-Mbps speed, a switching capacity of up to 3.2Gbps and nonblocking wire speed forwarding meet the performance needs for a high speed and smooth network.

Standards & Protocols Compliance

Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX.

Stable & Reliable Performance

The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.

Inductive Lightning Protection

Integrating professional circuits, Tenda New 16-Port Unmanaged Fast Switch can protect the power supply from inductive lightning (6KV in Common Mode Protection).

Simple Yet Cost-effective Solution for Expanding SMB & Campus Network

TEF1016D

What It Does

Main Features

Space-saving Design for Desktop & Rack Installation

Standards & Protocols Compliance

Stable & Reliable Performance

Inductive Lightning Protection

Plug & Play

Title	Size	Date
TEF1016D CE	0.60 M	2021-06-18
Symbols on Products and Materials	0.38 M	2025-06-21
Tenda Switch Quick Installation Guide(multi-language)	5.08 M	2024-10-11
