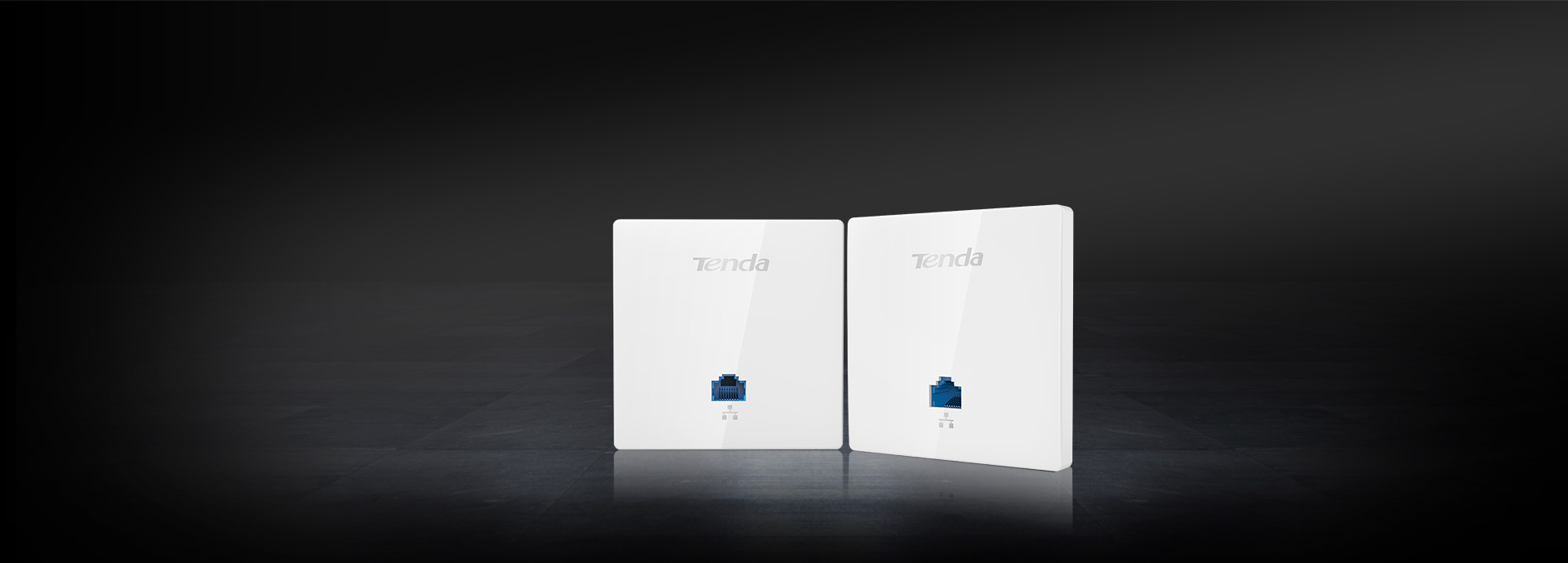

W6-S
300Mbps In-wall Wireless Access Point
What it does
W6-S is designed to provide wifi coverage for hotel rooms,villa,university dormitories, hospital wards, and other sites with densely divided rooms. Adopt of 86 Type wall mount junction box design, it can blend into existing decoration perferctly without any damage.Compliant with PoE 802.3af standard enable it to be deployed quickly.
Main Features
- • 2.4GHz 11n 300Mbps
- • Two 10/100Mbps LAN ports
- • Compliant with PoE 802.3af
- • VLAN tagging for multi SSID
- • Centralized managed by M3
- • 86 Type wall mount junction box design

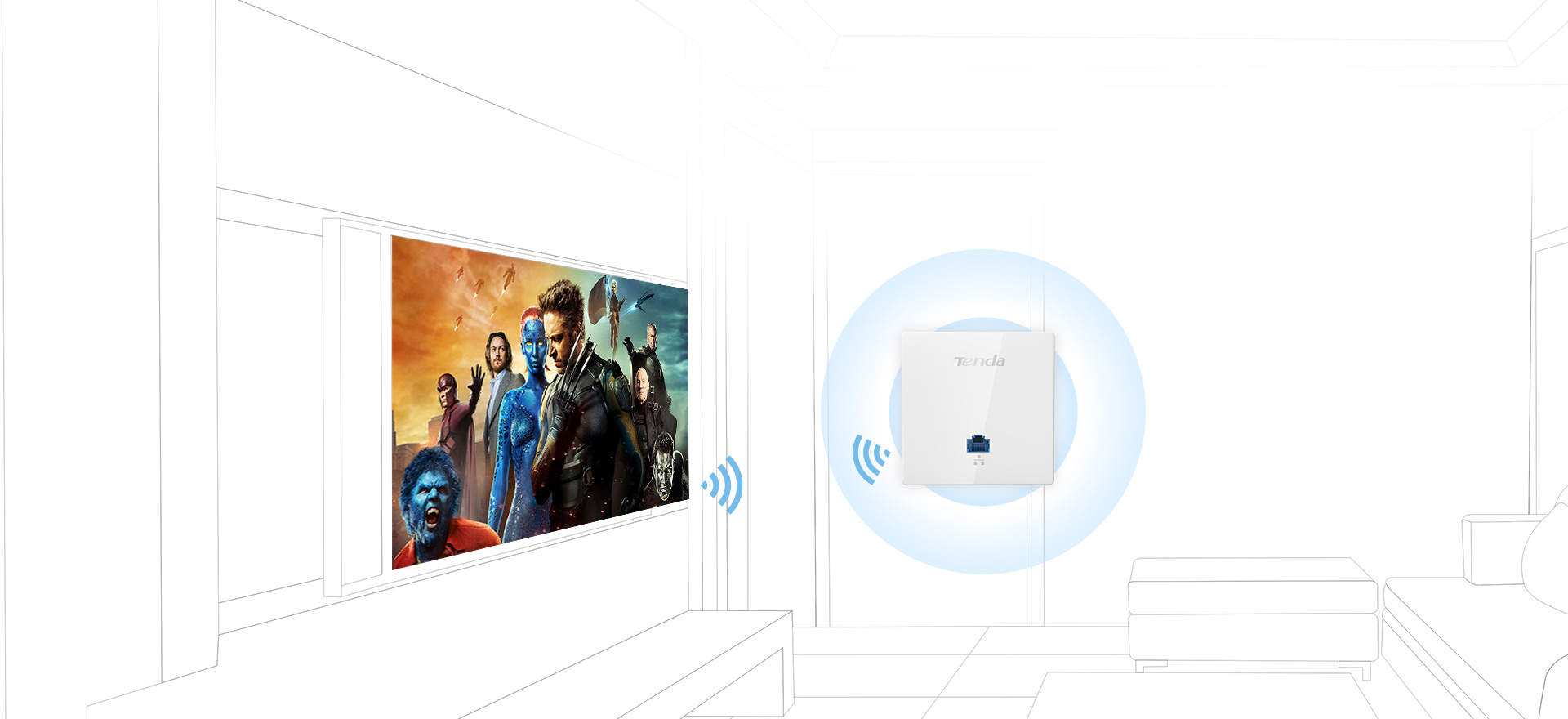

Wireless N300 Speed
W6-S transfer rates of up to 300 Mbps on the 2.4 frequency bands for faster file transfers and smoother video streaming.

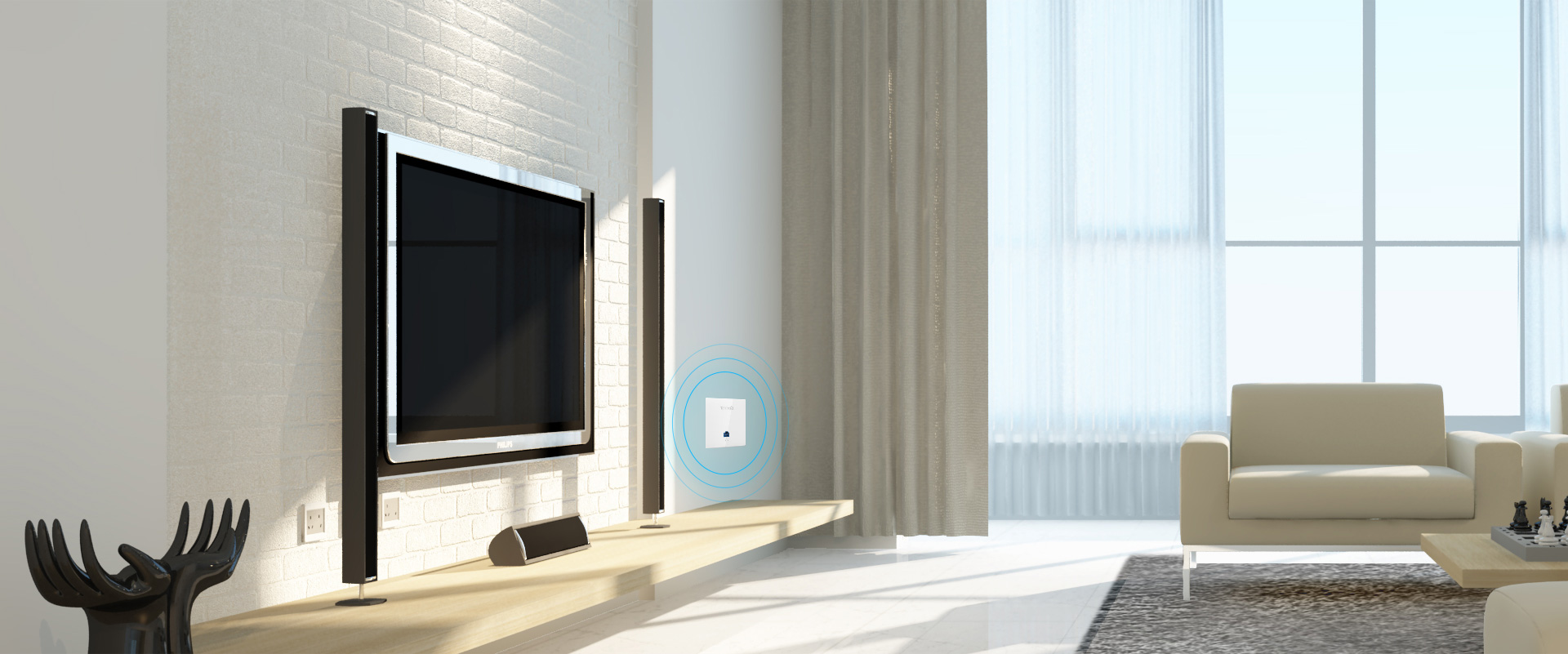

86 Type wall mount junction box design
W6-S adopts of 86 Type wall mount junction box design to deploy into the existing wall jack.It will pose no problem to neighbourhood panels or other decorations.

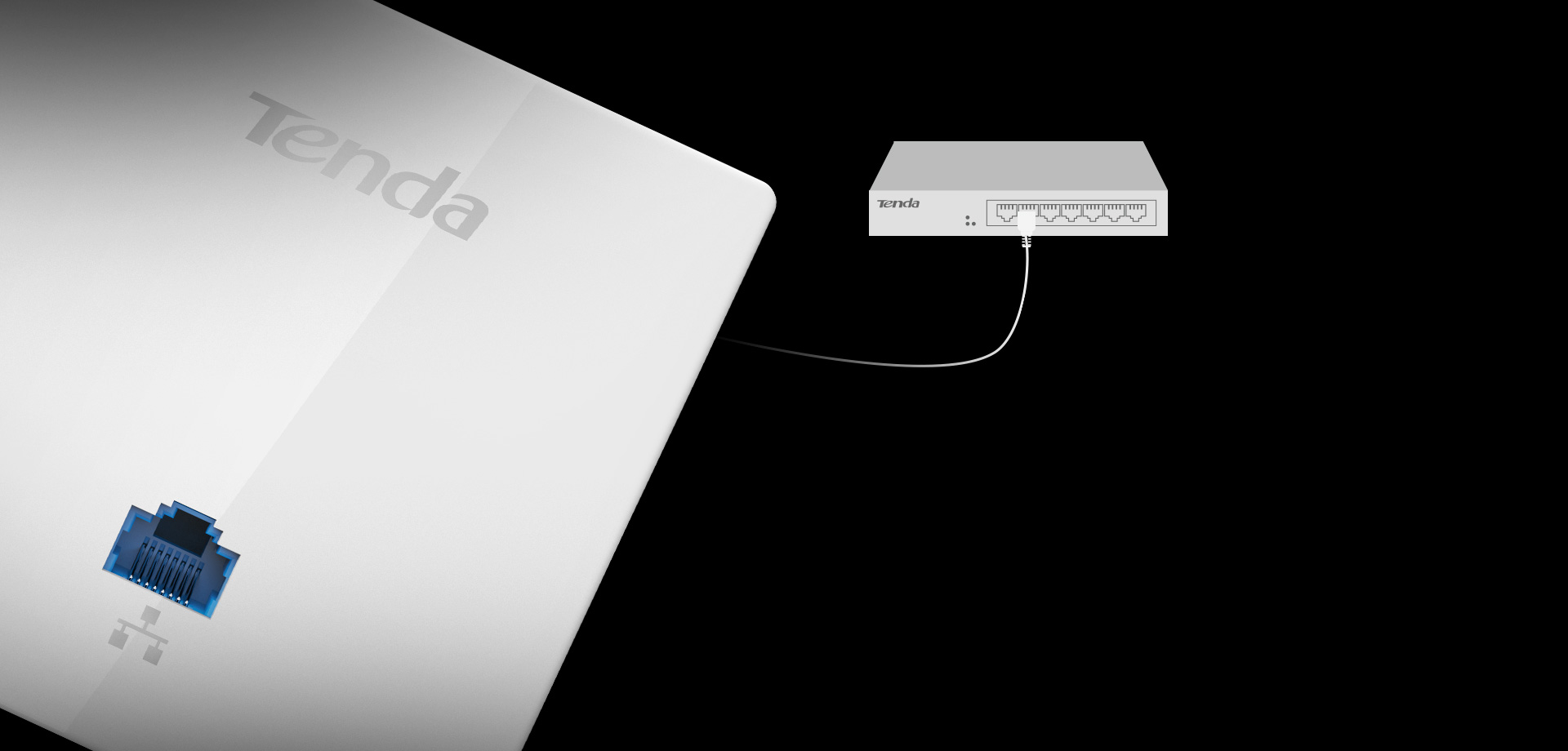

Compliant with PoE 802.3af
The port on the back panel support Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to W6-S.It is easy to deploy without additional power supply.
Advanced Wireless Security
W6-S offers multi mechanism to prevent unauthenticated access and protect data privacy .
• 64/128bit WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
• Wireless Access Controll based on the mac address of wireless adapter
• Client Isolation and SSID isolation
VLAN Tagging For Multi SSID
W6-S can be configured to broadcast up to two SSID. Each SSID can be tagged to a specified network VLAN to establish different internet access rights.
Easy to setup, Easy to manage

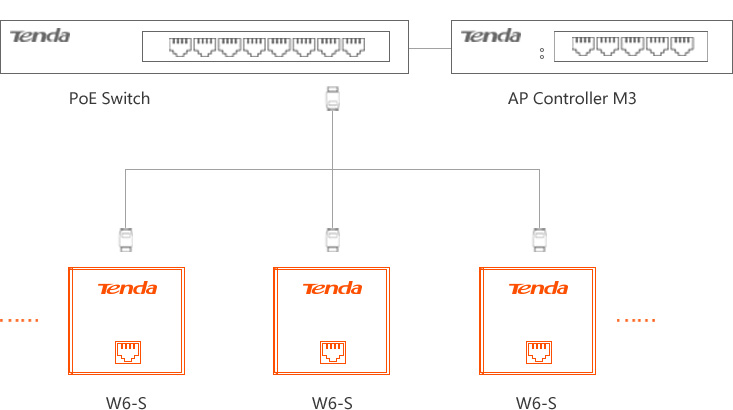

W6-S can be managed by AP Controller, the administrator can setup, manage and monitor all the Aps online status more easily.
W6-S Details and Specifications:
