A19 v1.0

Hardware

Interfaces

1*10/100Mbps RJ45 port

Antenna Type

3dBi dual-band antennas*2

Button

WPS & Reset Button*1

LED Indicator

LED*1

Dimension

72*32*161mm(L*W*H)

Wireless

Wireless Standard

IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

Frequency

5 GHz
2.4 GHz

Data Rate

5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

Transmission Power

2.4G GHz ≤ 20dBm;
5 GHz ≤ 23dBm

Wireless Modes

Repeater Mode

Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK
Supports blacklisting management
Supports hide SSID

Others

System Tool

LED Indicator Control,
Online Upgrade,
Factory Settings,
Login Password and Reboot

Certification

CE / FCC / RoHS

Plug Type

CN
US
EU
UK
AU

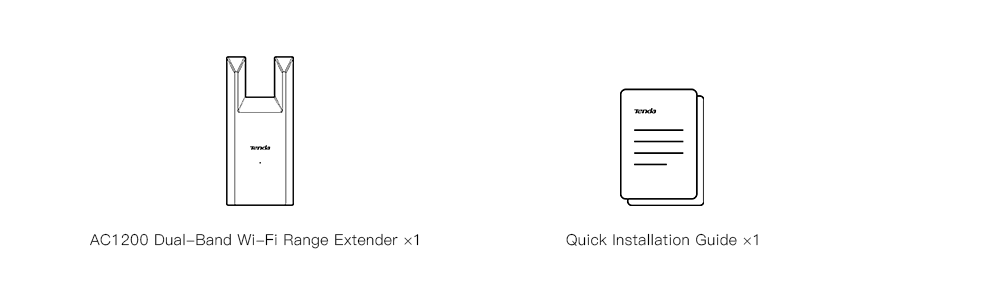

Package Contents

AC1200 Dual-Band Wi-Fi Range Extender*1
Quick Installation Guide*1

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH,
non-condensing
Storage Humidity: (5~90)% RH,
non-condensing

Product Accessories
