1/3" Progressive Scan CMOS sensor

ICR type

Pan：0°to 260°

Fixed Lens：4mm
PT Lens：6mm

Fixed Lens：F1.6
PT Lens：F1.6

Fixed Lens：Horizontal FOV: 83.2°, Vertical FOV: 52.9°, Diagonal FOV: 90.7°
PT Lens：Horizontal FOV: 51.4°, Vertical FOV: 29.3°, Diagonal FOV: 56.9°

6 IR Lights, 6 Spotlights

Up to 30 m/100 ft (depending on environment)

850nm

Smart Mode, Full Color Mode, Black & White Mode

Fixed Lens：H.265, H.264
PT Lens：H.265, H.264

Fixed Lens：2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
PT Lens：2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720

Fixed Lens：768 × 432
PT Lens：768 × 432

Fixed Lens：1-15fps, Default 15fps
PT Lens：1-15fps, Default 15fps

Fixed Lens：512kbps -- 4096kbps
PT Lens：512kbps -- 4096kbps

Fixed Lens：CBR,VBR
PT Lens：CBR,VBR

G.711A, G.711U, AAC

8 kHz

Two-way Audio, Voice Input

DWDR, BLC, HLC, 3D DNR

4 Areas

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Both fixed lens and PT lens are supported

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

TDSEE (mobile phone), TDSEE STUDIO (PC)

Plug-in free live view: Chrome, Edge, Opera

0°--355°

0°--90°

6

Panoramic Patrol, Preset Patrol

Internal antenna

IEEE 802.11 b/g/n/ax

Up to 287Mbps

20/40 MHz

DSSS/OFDM/OFDMA

2.4GHz: 2412MHz-2472MHz(CH1-CH13)

2.4GHz: <0.1W(EIRP)

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Both fixed lens and PT lens are supported human detection, vehicle detection, non-motor vehicle detection, line crossing Detection, intrusion detection

Sound&light Alert, Dual-lens Linkage Tracking

3 Customized Audios

Built-in MIC, adjustable microphone volume

Built-in Speaker, 83 dBA (Alarm sound at 1 meter), adjustable sound level

Built-in Micro SD Card Slot, Up to 512 GB

Support

Dual Color(red & blue) LED Indicator

12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug

Plastic

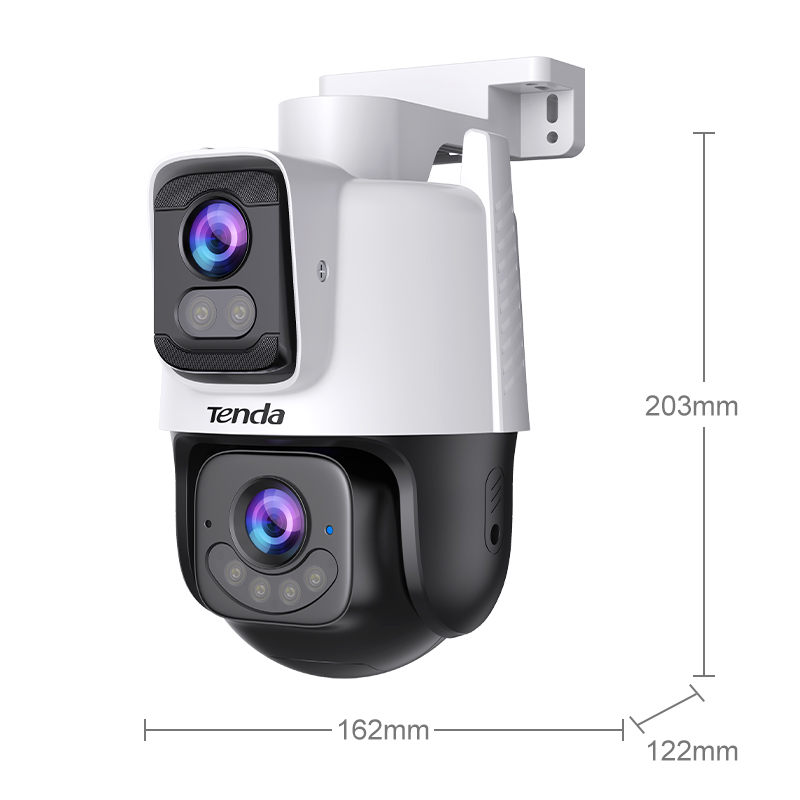

203mm x 122mm x 162mm (8.0" ×4.8" × 6.4" )

240mm x 145mm x 193mm (9.4" ×5.7" × 7.6" )

575g(1.27lb)

1050g(2.31lb)

IP65

Wall Mounting, Ceiling Mounting, Pole Mounting

CE, RoHS, FCC, RCM, UKCA

Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)

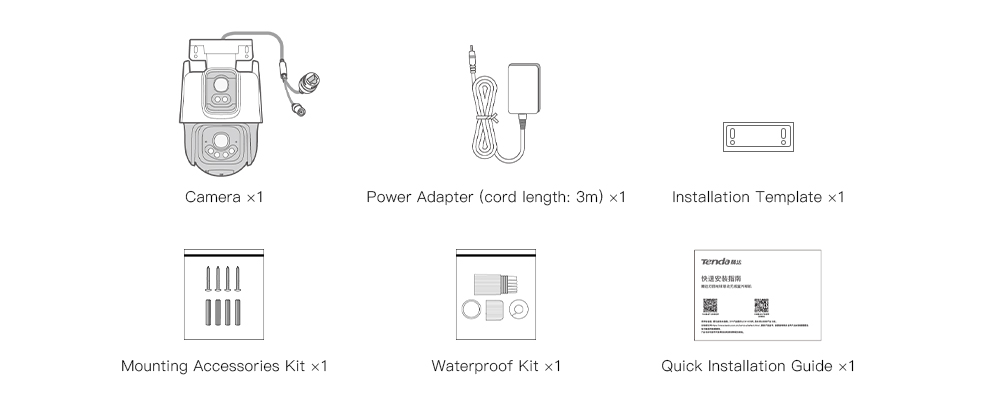

Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
