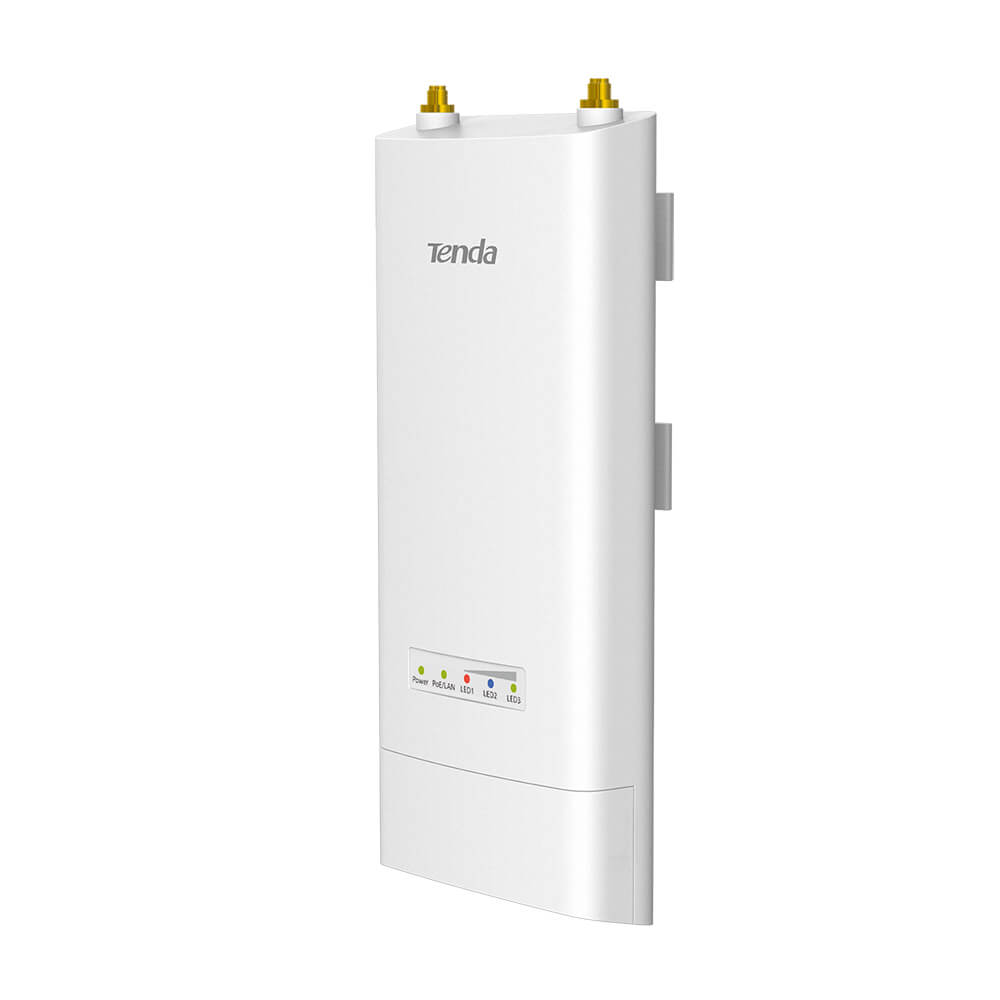

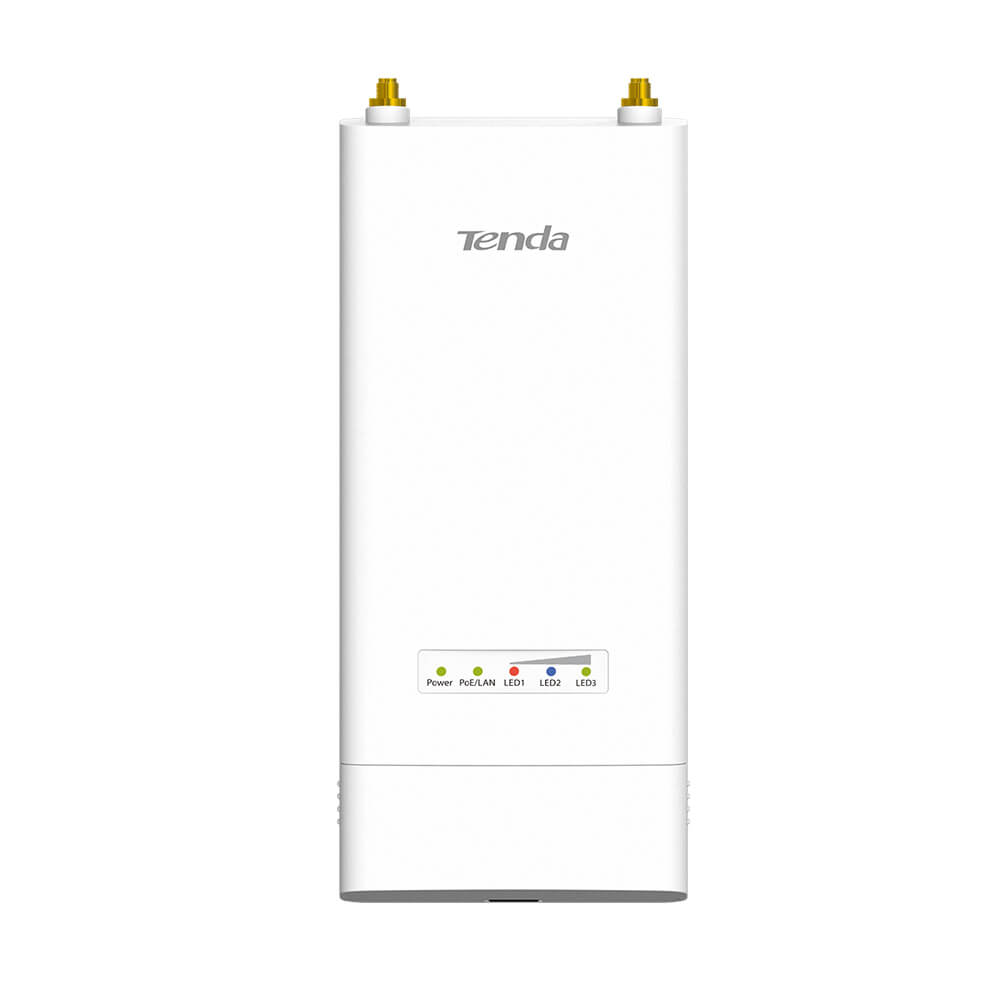

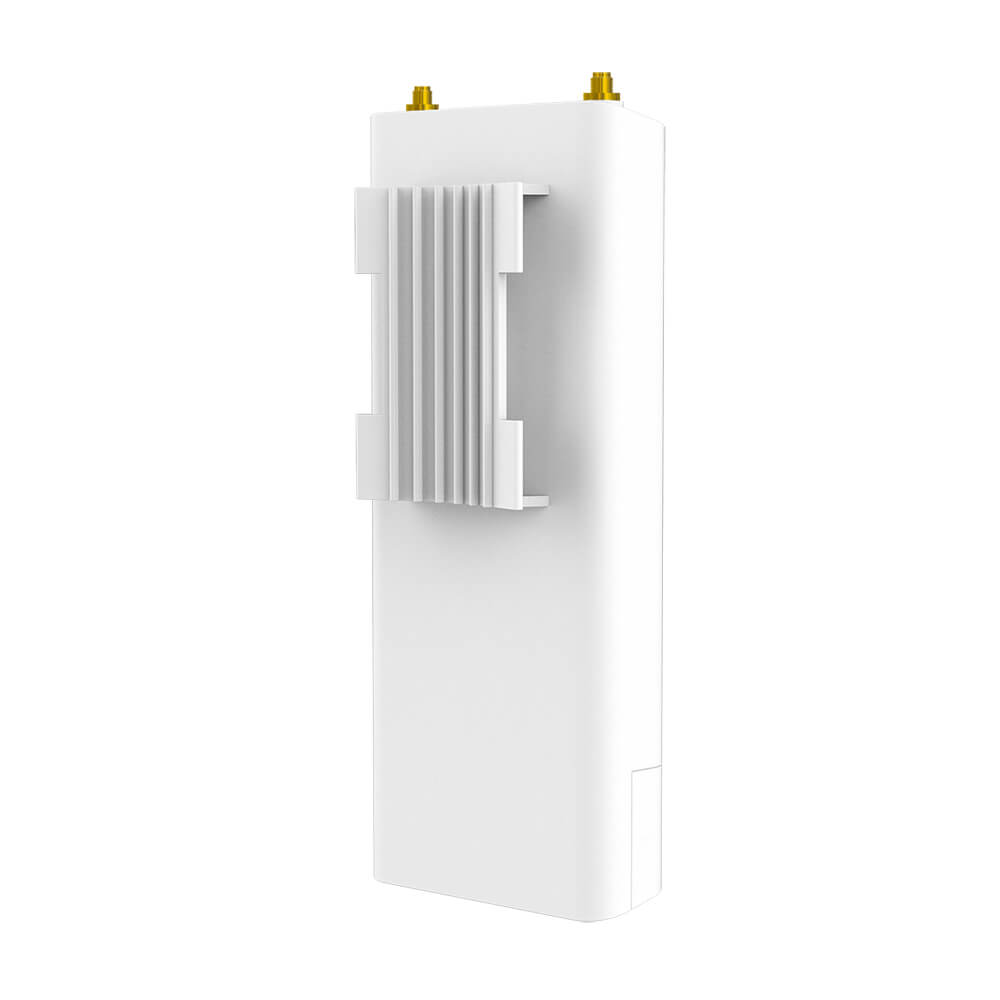

B9

Product Information

Model

Dimension

194.7*83*42.1mm(L*W*H)

Deployment

Pole Mount

Application Scenarios

PtP, PtMP for rural wireless connectivity and CCTV surveillance

Hardware

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n/ac

Maximum Wireless Rate

867Mbps

Interfaces

1*10/100/1000Mbps Ethernet Port

Antenna

2*RP-SMA Connector

GND

Reset Button

Power Consumption

8.5W

Waterproof Level

IP65

LED Indicator

PoE/LAN,LED1,LED2,LED3

Power Method

24V0.5A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN ( +4,5pins,-7,8pins)
Voltage range: 21-25V DC

Reception Sensitivity

MCS0: -96dbm
MCS7: -72dbm

Software

TDMA

Support（TD-MAX technology）

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

20/40/80MHz

Channel Shift

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Maximum 400mW(26dBm)
Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

Support

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software -- CPE Assistant

Others

Package Contents

1*5GHz 11AC 867Mbps Gigabit Outdoor Basestation
1*Passive PoE Power Adapter
1*Power Cord
1*Quick Installation Guide

Operation Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
