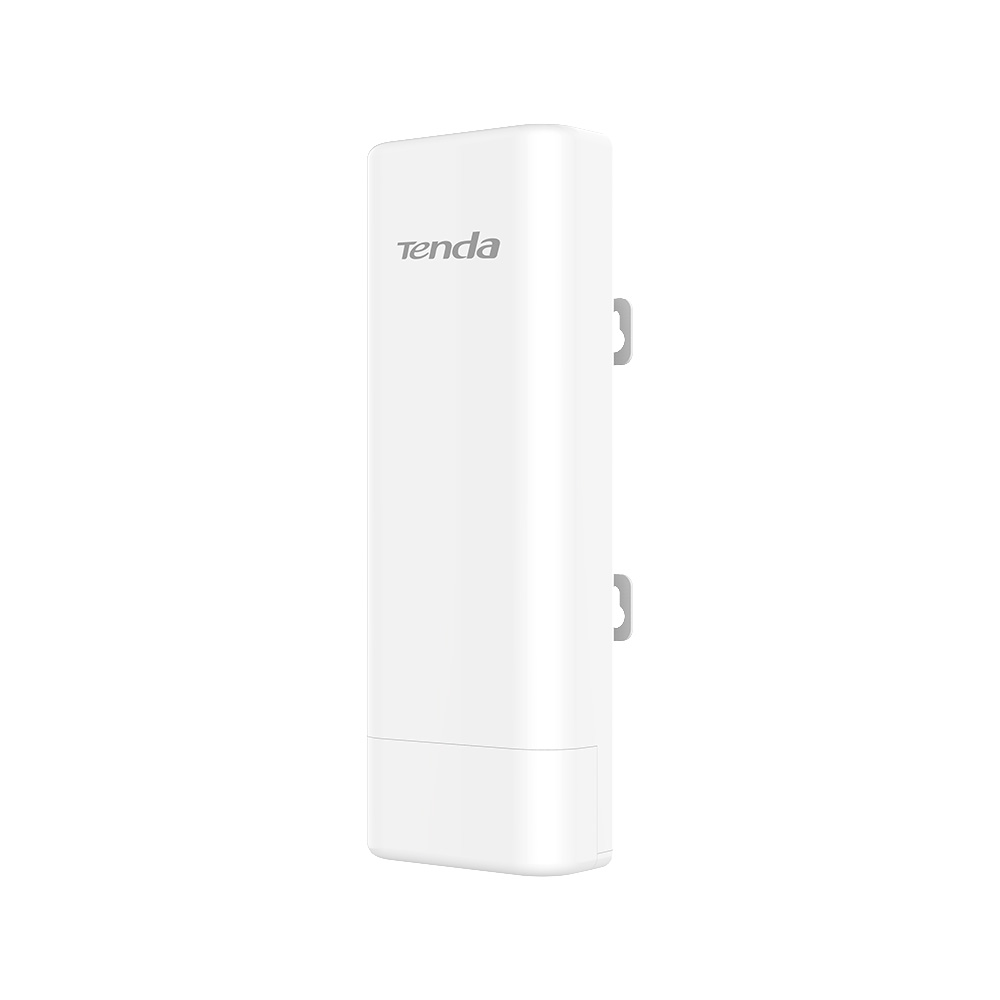

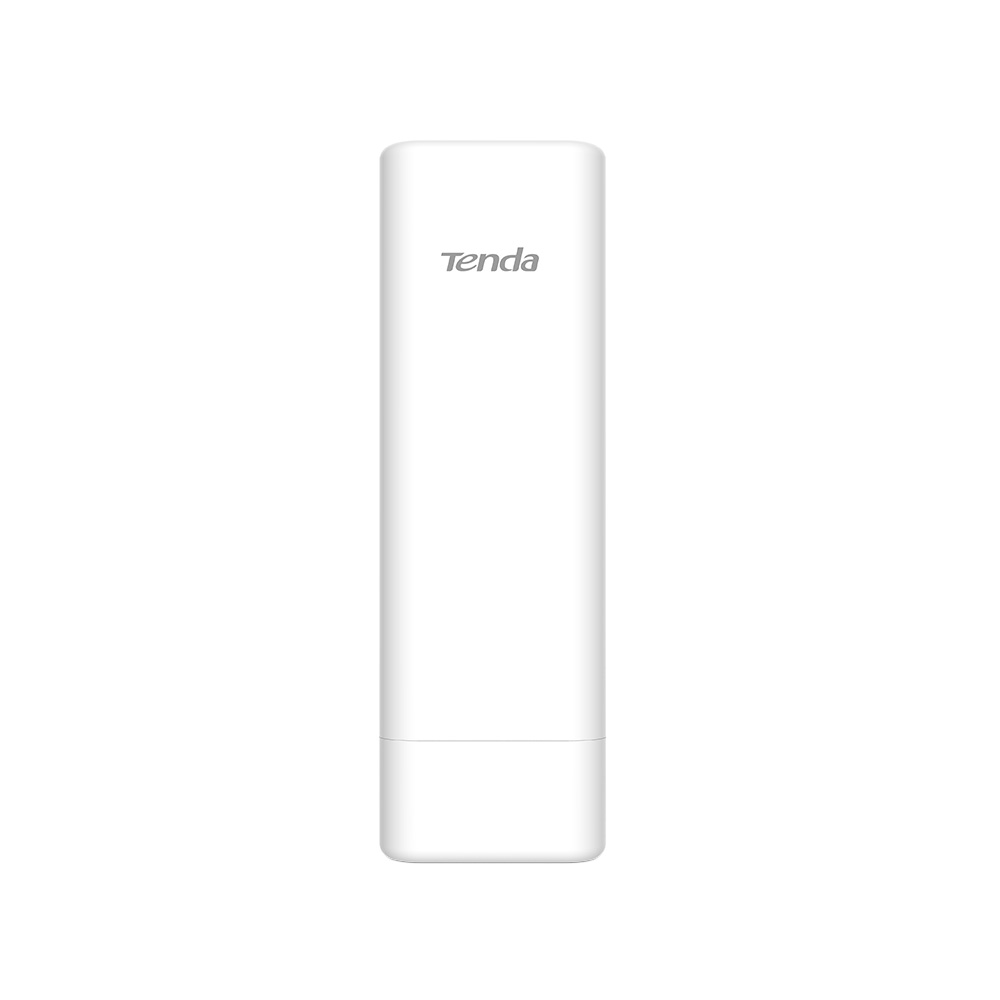

CPE al aire libre O6 1-pack

O6 1-pack

Product Information

Model

Dimension

270*94.86*67.5mm

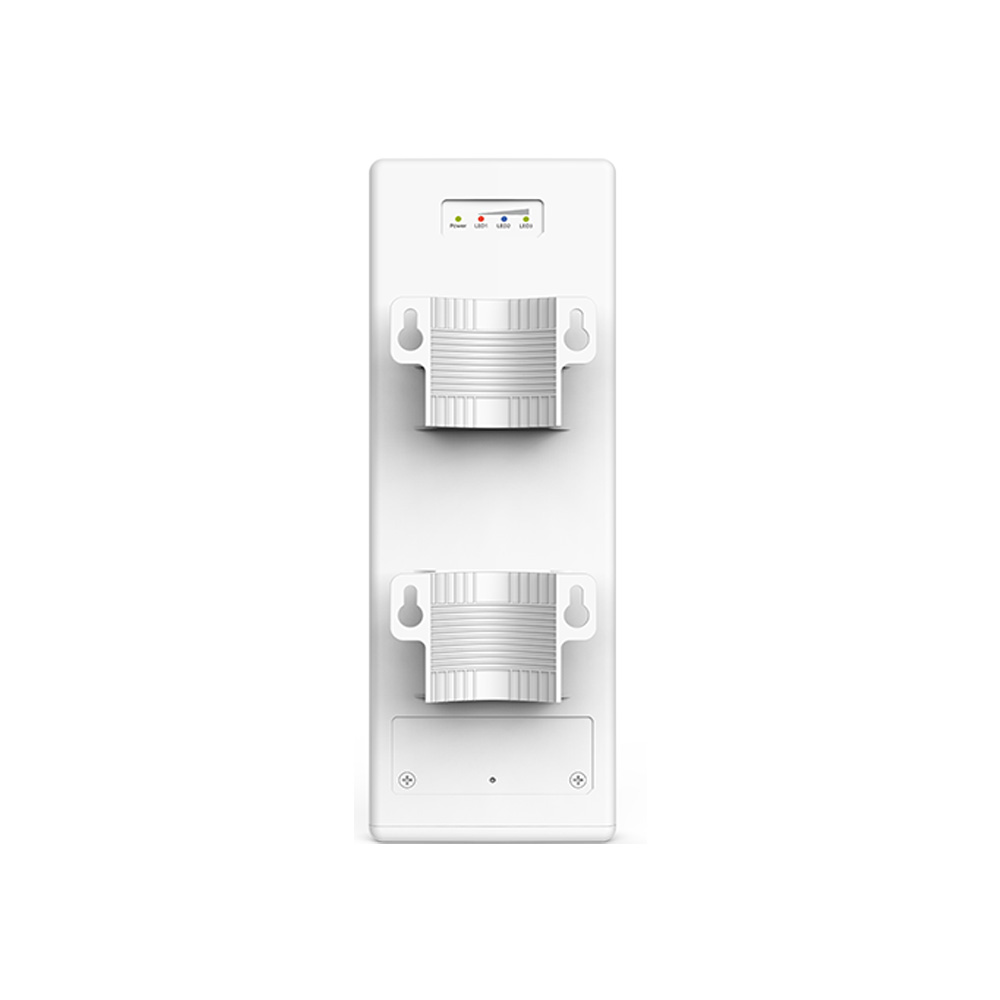

Deployment

Pole/Wall Mount

Application Scenarios

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Hardware

Frequency Range

5GHz

Compliant Standards

IEEE 802.11b/a/n/ac

Private TDMA Protocol

TD-MAX

Maximum Wireless Rate

867Mbps

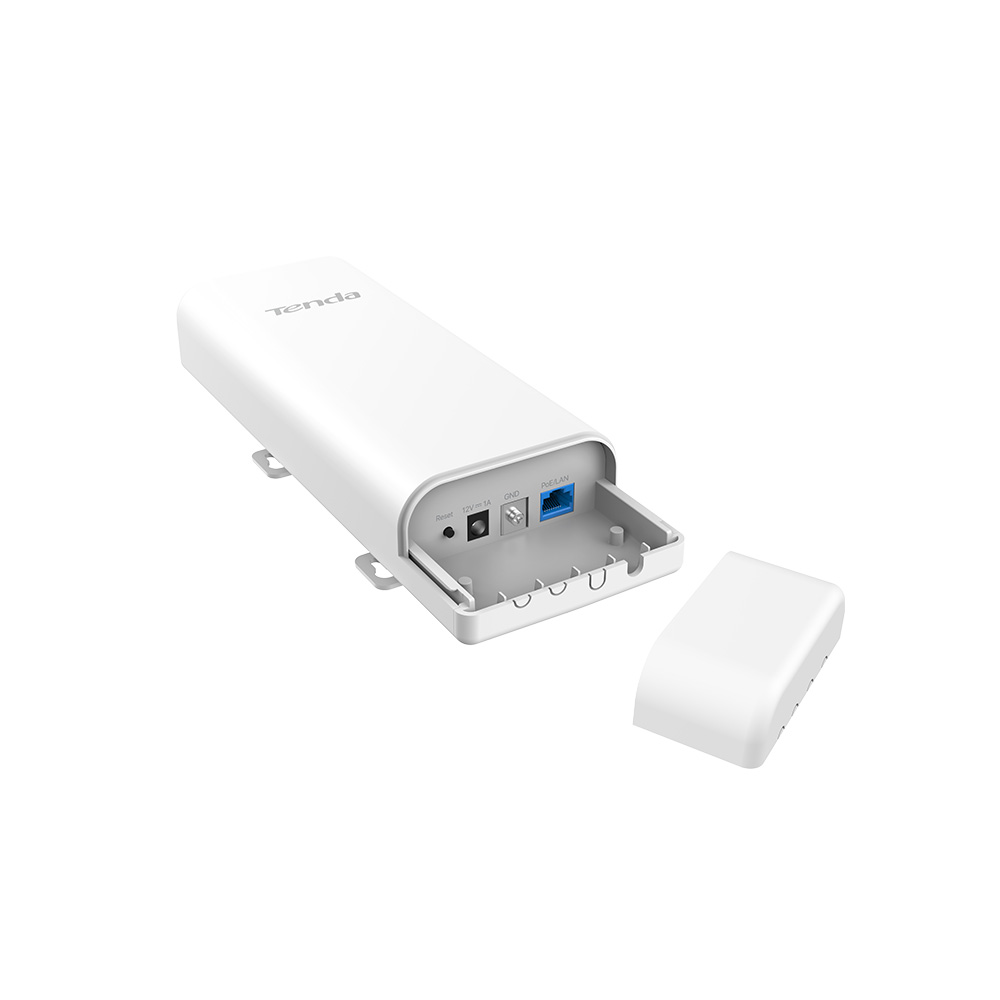

Interfaces

1*10/100/1000Mbps Ethernet Port

Antenna Polarization

Dual Polarization

Antennas Gain

16dBi

Antenna Beamwidth

Horizontal: 30° Vertical: 30°

GND

1*GND

Reset Button

1*Reset Button

Power Consumption

6.5W

Waterproof Level

IP65

LED Indicator

PoE/LAN, LED1, LED2, LED3

Power Method

PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC

Lightning Protection

6000V

PoE 802.3af/at

Power over ethernet up to 100 meters

Passive PoE

Passive power over ethernet via PoE/LAN (+4,5pins-7,8pins )
up to 60 meters
Voltage range: 21-25V DC

Reception Sensitivity

11a 6Mbps -91dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 -62dBm±1.5dBm

Software

TDMA

Support

Operating mode

AP/Station/WISP/Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

20/40/80MHz

Channel Shift

Support

Client Limitation For SSID

Support

Weak Signal Client Limitation

Support

Wireless Access Control

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP, WPA-PSK, WPA2-PSK, WPA

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

Support

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time and Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software CPE Assistant

Others

Package Contents

1*5GHz 16dBi 11AC Gigabit Outdoor CPE
1*PoE Power Adapter
1*Quick Installation Guide

Operation Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
