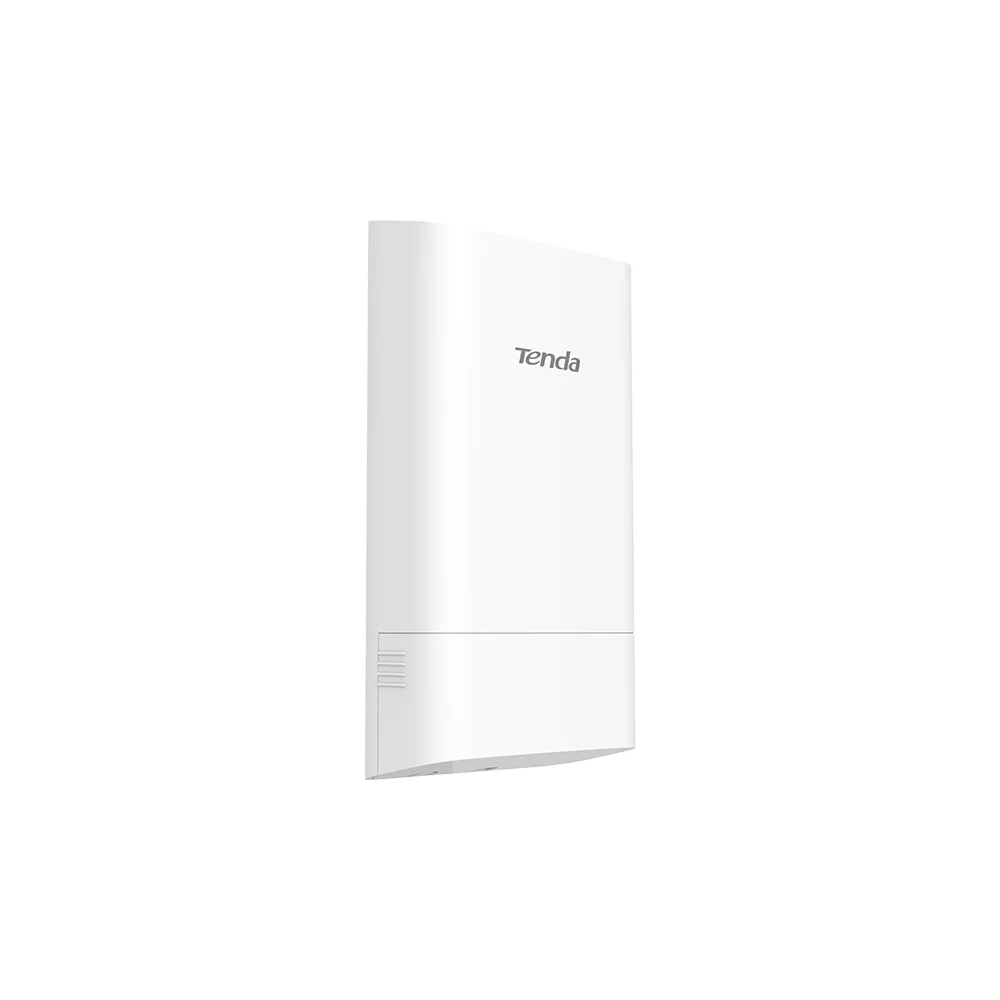

CPE al aire libre O1-5G 1-pack/2-pack

O1-5G 1-pack/2-pack

Product Information

Model

O1-5G

Dimension

132*72*46.3mm

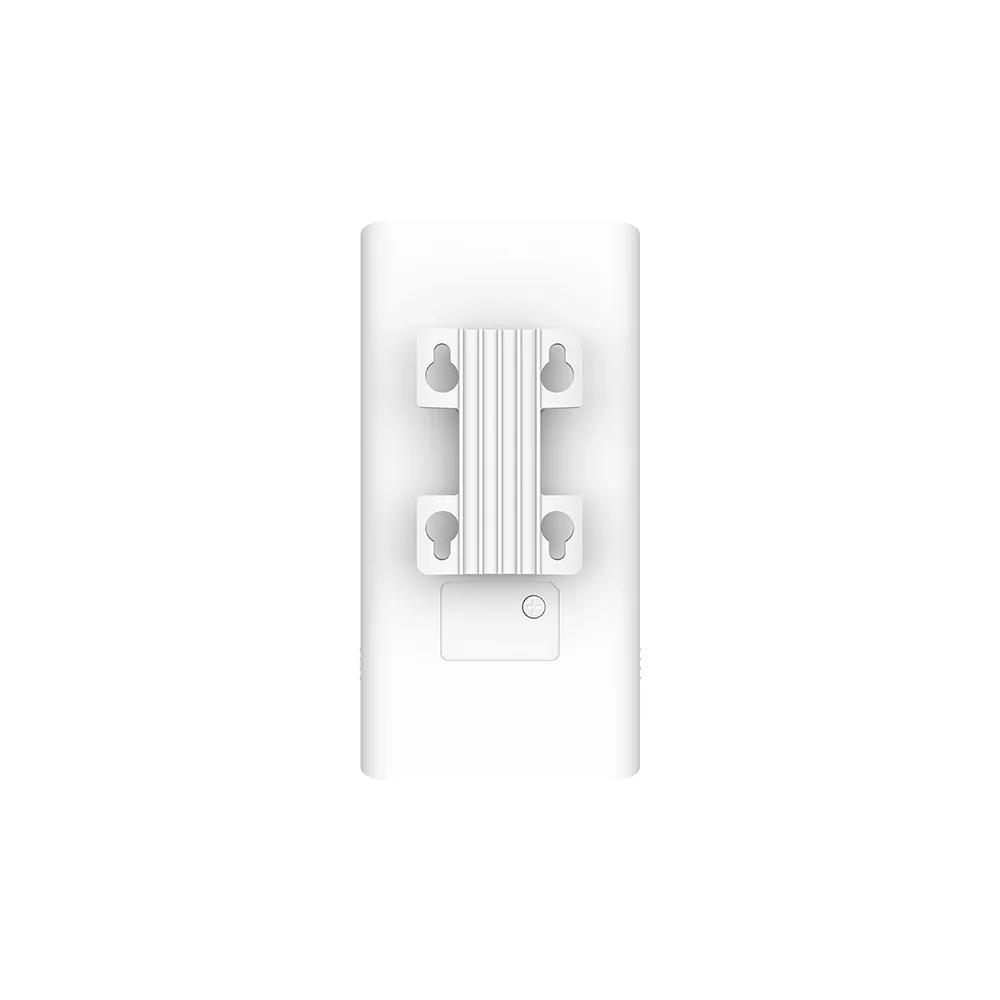

Deployment

Pole/Wall Mount

Application Scenarios

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Hardware

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n/ac

Maximum Wireless Rate

867Mbps

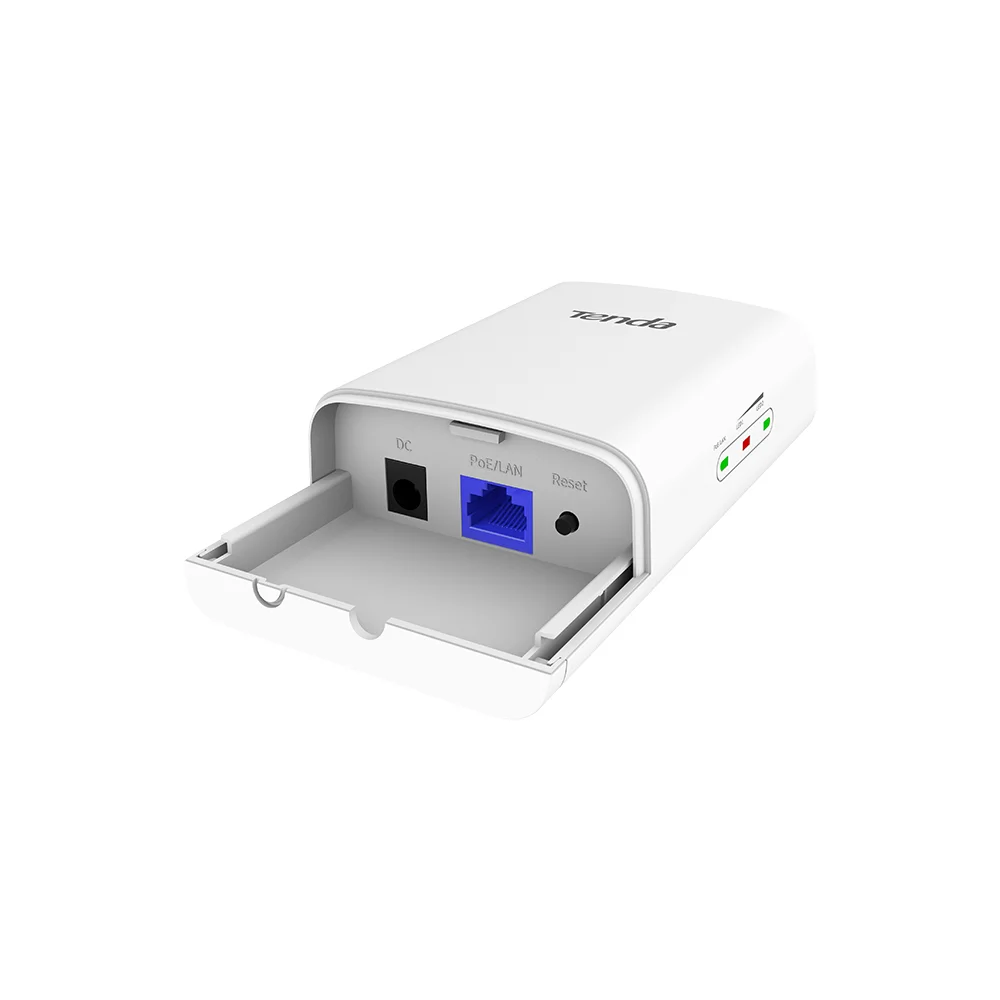

Interfaces

1*10/100Mbps LAN Port

Antenna Polarization

Dual Polarization

Antennas Gain

9dBi

Antenna Beamwidth

Horizontal: 30° Vertical: 30° Elevation: 30°

Reset Button

1*Reset Button

Power Consumption

4.7W

Waterproof Level

IP65

LED Indicator

PoE/LAN,LED1,LED2

Power Method

12V 1A Passive PoE
12V 1A DC

Passive PoE

Passive power over ethernet via PoE/LAN (+4,5pins,-7,8pins )
up to 60 meters
Voltage range: 9-13V DC

Reception Sensitivity

11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm

Software

Operating mode

AP/Station

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

Channel Bandwidth

20/40/80MHz

Channel Shift

Support

Client Limitation For SSID

Support

Wireless Access Control

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK

Transparent Bridge

Support

VPN Pass-Through

PPTP,L2TP

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Time and Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software -- CPE Assistant

Others

Package Contents

1*5GHz 9dBi 11AC 867Mbps Outdoor CPE
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide

Operation Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
