IEEE802.3, IEEE802.3u, IEEE802.3ab

4-Core 2GHz CPU

512MB

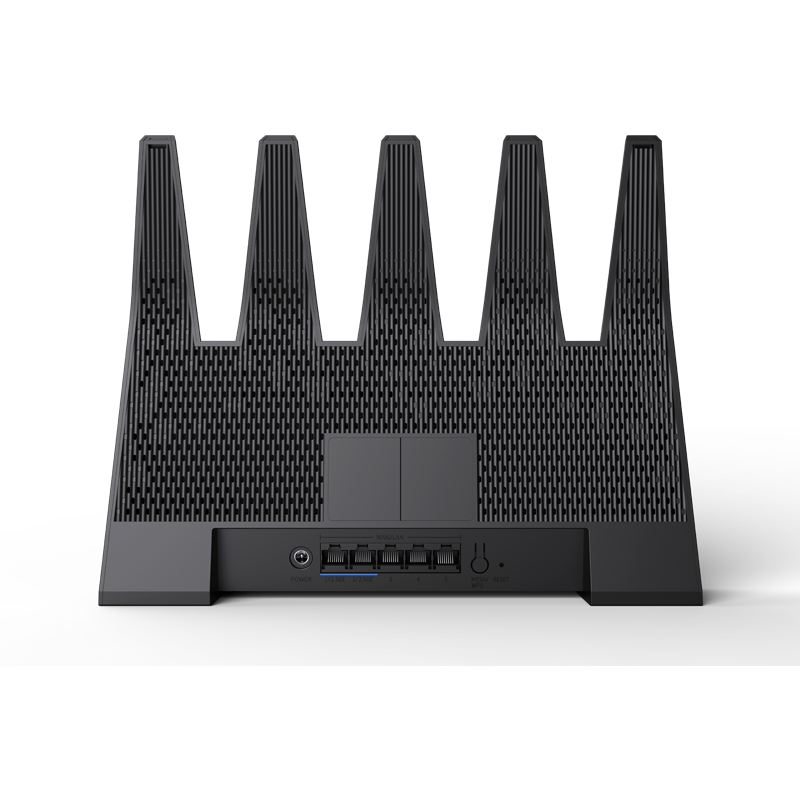

2*10/100/1000/2500Mbps WAN/LAN ports
3*10/100/1000Mbps WAN/LAN ports

5*external antennas

1*Mesh/WPS button, 1*Reset button

Input: AC 100-240V~50/60Hz, 0.5A
Output: DC12V⎓2A

1* LED

(L*W*H) 290.25mm* 52.4mm*230mm

IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz

5 GHz: 5765 Mbps (802.11be, HE160)
2.4 GHz: 1376 Mbps (802.11be)

2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

CE:
＜20 dBm（2.4 GHz）
＜23 dBm（5 GHz）
FCC:
＜30 dBm（2.4 GHz）
＜30 dBm（5 GHz）

SSID broadcasting and hiding
MU-MIMO
Beamforming signal directional transmission technology
OFDMA
Multi-Link Operation（MLO）
4K-QAM
Multi-RUs

WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS（WiFi Protected Set-up) fast encryption

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify, Maxis, Maxis-special, Celcom, Digi

IPv4&IPv6

Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）

DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation

Client Filter
URL Filter
Time Limit

Port Forwarding
DMZ Host
UPnP

ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN

DynDNS, no-ip, oray, 88ip

IPSec Transparent Transmission
PPTP Transparent Transmission
L2TP Transparent Transmission
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
OpenVPN Client
WireGuard Client

WAN/LAN Port Auto-Negotiation
EasyMesh
Smart Diagnosis
Wi-Fi timer switch
Wireless power adjustment
NFC
IPTV
IPv6
IoT Network
Power Control
Smart LED on/off

Support App and Web Management
Bandwidth Control
Guest Network
MAC Address Clone
Supports black list and white list
Unify 2.4GHz & 5GHz
Static Routing
Remote Web Management
Backup & Restore configurations
Firmware upgrade online

CE, FCC,RoHS

Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃

Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~90% RH non-condensing

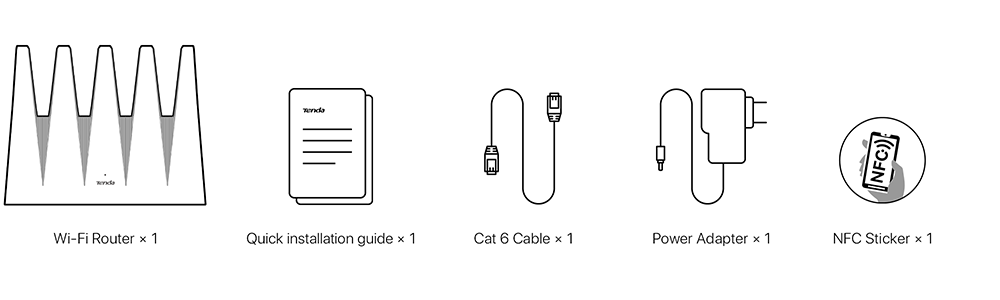

Wi-Fi Router *1
Cat 6 Cable*1
NFC Sticker*1
Power Adapter*1
Quick Installation Guide*1
