Комплекти з підтримкою PoEK8P-4CR
K8P-4CR

K8P-4CR

Відео та аудіо входи

IP Video Input

8-ch

IP Video Resolution

4MP

Input Bandwidth

60 Mbps

Audio Input

1-ch, RCA (2.0 Vp-p, 10kΩ)

Відео та аудіо виходи

HDMI Output

1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

Output Bandwidth

60 Mbps

Audio Output

1-ch, RCA (2.0 Vp-p, 10kΩ)

Декодування відео та аудіо

Video Decoding Format

H.265,  H.264

Audio Decoding Format

G.711A, G.711U

Recording Resolution

4MP, 3MP, 1080P, 720P, D1

Decoding Capability

4-ch@1080P (30 fps)

Stream Type

Video, Video & Audio

Управління записом

Record Mode

Normal, Alarm

Playback Mode

Instant, Channel, File, Tag

Sync Playback

Up to 8-ch

Backup Mode

USB device

Управління мережею

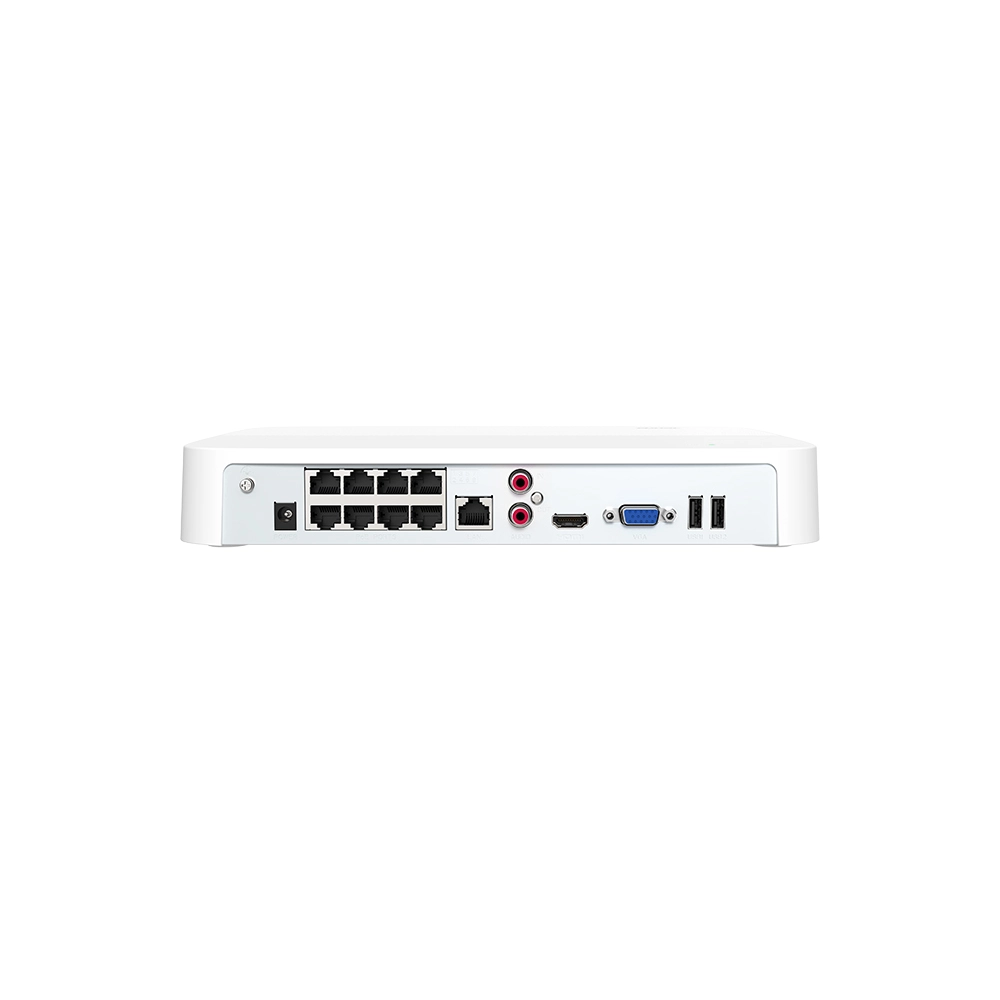

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Network Protocol

HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS

Client

TDSEE (mobile phone), TDSEE STUDIO (PC)

Web Browser

Plug-in free live view : Chrome, Edge, Opera, Safari

PoE

PoE Port

8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports

PoE Standard

IEEE 802.3af

PoE Power

≤60W

HDD диск

HDD Interface

1 SATA 3.0 interface

Capacity

Up to 10 TB capacity for each HDD

Зовнішні інтерфейси

USB Port

2 x USB 2.0

Загальні

Power

51 VDC, 1.25 A

Dimension

200 mm × 200 mm × 48 mm

Weight (Without HDD)

780 g (1.72lb)

Certification

CCC, CE, FCC, RoHS,UKCA

Installation Method

Desktop mounting, Wall mounting

Temperature

Operating temperature: 0°C - 40°C (32°F - 104°F)
Storage temperature: -30°C - 70°C (-22°F - 158°F)

Humidity

Operating humidity: 10% - 90% RH (non-condensing)
Storage humidity: 5% - 95% RH (non-condensing)

Камера

Image Sensor

1/3” CMOS sensor

Max. Resolution

2560 x 1440

Day and Night

Built-in IR-CUT Dual Filters

Digital Noise Reduction

3D DNR

DWDR

Support

Backlight Compensation

Support

Fill Light

1 IR Light

Infrared Fill Light Distance

Up to 30 meters (depending on environment)

Night Vision Mode

Infrared Mode

Лінза

Lens Type

4 mm@F2.2

FOV

Horizontal FOV: 74.9°, Vertical FOV:  41.3°, Diagonal FOV: 88.2°

Відео

Video Encoding Format

H.265, H.264

Main Stream

25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080)

Sub Stream

25fps (640 × 360, 352 × 288, 320 × 240)

Аудіо

Audio Encoding Format

G.711A, G.711U

Audio Sampling Rate

8 kHz

Мережа

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Інтелектуальна сигналізація

Motion Detection

Support

Human Detection

Support

Video Tampering

Support

External Interface

Audio Input

Built-in microphone

Загальні

Power

PoE: IEEE 802.3af

Dimension

106.8 mm x 90.5 mm

Weight

174 g

Installation Method

Ceiling mounting, Wall mounting

Certification

CE, FCC, RoHS,UKCA

Temperature

Operating temperature: -10°C - 50°C (14°F - 122°F)
Storage temperature: -40°C - 70°C (-40°F - 158°F)

Humidity

Operating humidity: 10% - 95% RH (non-condensing)
Storage humidity: 3% - 95% RH (non-condensing)

Набір

Dimension

395mm x 377mm x 305mm

Weight (With Package)

7.25kg

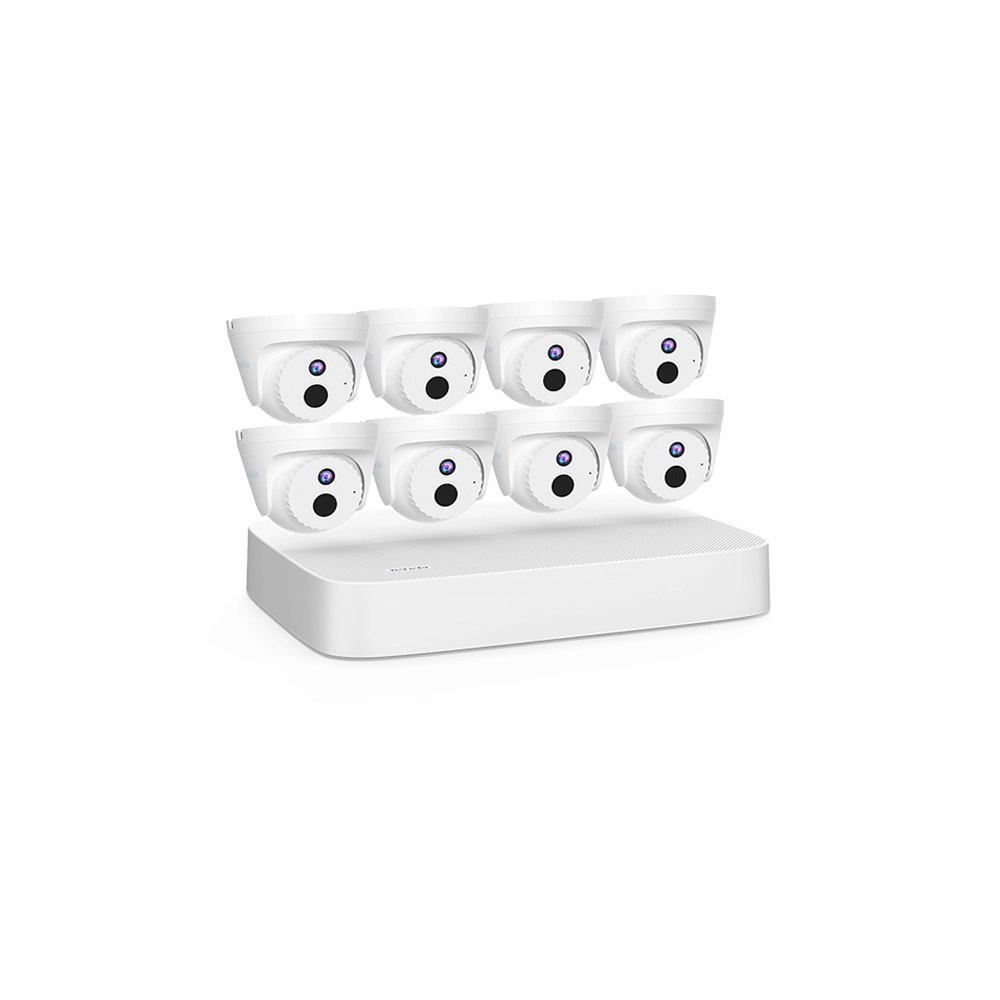

Package Contents

PoE Network Video Recorder x 1
Power adapter (51V 1.25A) x 1
Screw kit (NVR) x 1
Mouse x 1
PoE Camera x 8
Screw kit (camera) x 8
Mounting template x 8
Screwdriver x 1
HDMI cable x 1
Surveillance sticker x 1
1 m Ethernet cable  x 1
18 m Ethernet cable x 4
30 m Ethernet cable x 4
User manual x 1
