AP5-how to login homepage

 How to login the homepage of this AP?

Product line: Wireless    Model number:  AP5

This article will guide you how to login the homepage of wireless AP. Please connect PC to AP4/AP5’s LAN port with Ethernet cable to login its homepage.

Steps are as follow.

Part 1: Connect the devices

Part 2: Configure your computer

Part 3: Login the AP

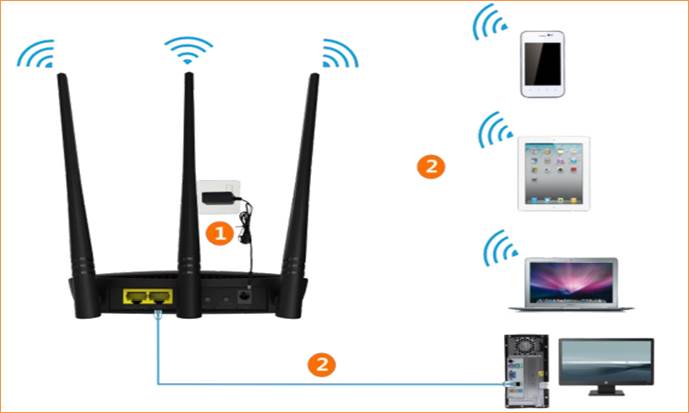

1 Position the wireless range extender close to a wireless router or access point and then plug it into a power outlet nearby.

Note: after connection the LAN light should be blinking.

1 Click on Network Connection Icon on the system bar, then click on Open Network and Sharing Center. (Here is for windows 7, other operating system)

说明: 无线信号.png

2 Click on Change adapter settings.

说明: change.png

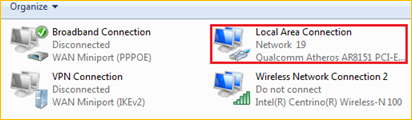

3 Right click on Local Area Connection, then choose Properties option.

说明: local.png

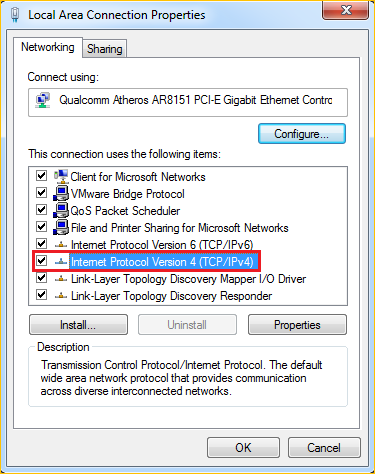

4 Double click on Internet Protocol Version 4(TCP/IPv4)

说明: IP4.png

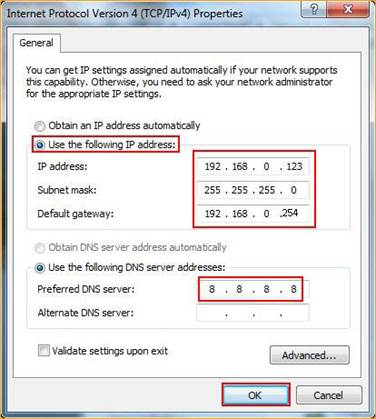

5 Choose Use the following IP address and Use the following DNS server address and then click OK.

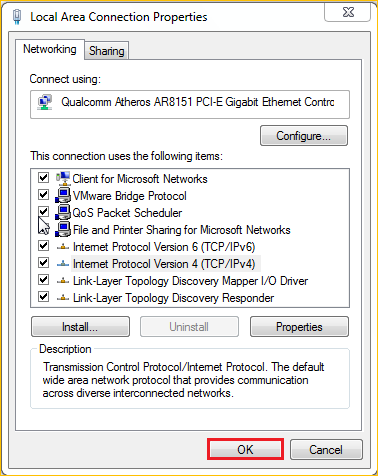

6 Also click on OK on the first Local Connection Properties window

说明: OK.png

1 Open a browser then type re.tendacn.com in the Address bar, click Enter.

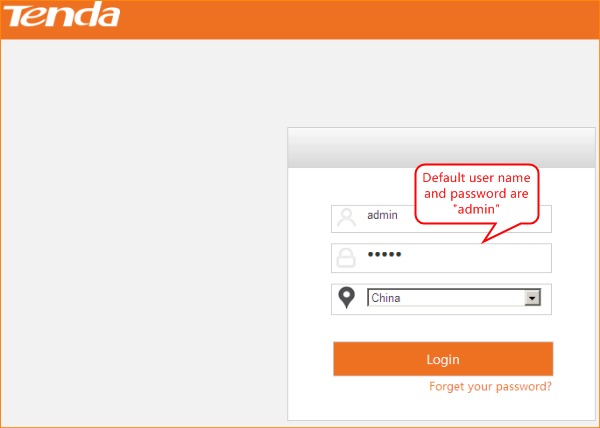

2 Type the user name and password in the bars then click on the Login button to login the setting page.
