End of Life

MW5c 2-Pack AC1200 Whole Home Mesh WiFi System

AC1200 Whole Home Mesh WiFi System

Datasheet
Standard&ProtocolIEEE802.11a/b/g/n/ac
IEEE 802.3, IEEE 802.3u, IEEE 802.4ab

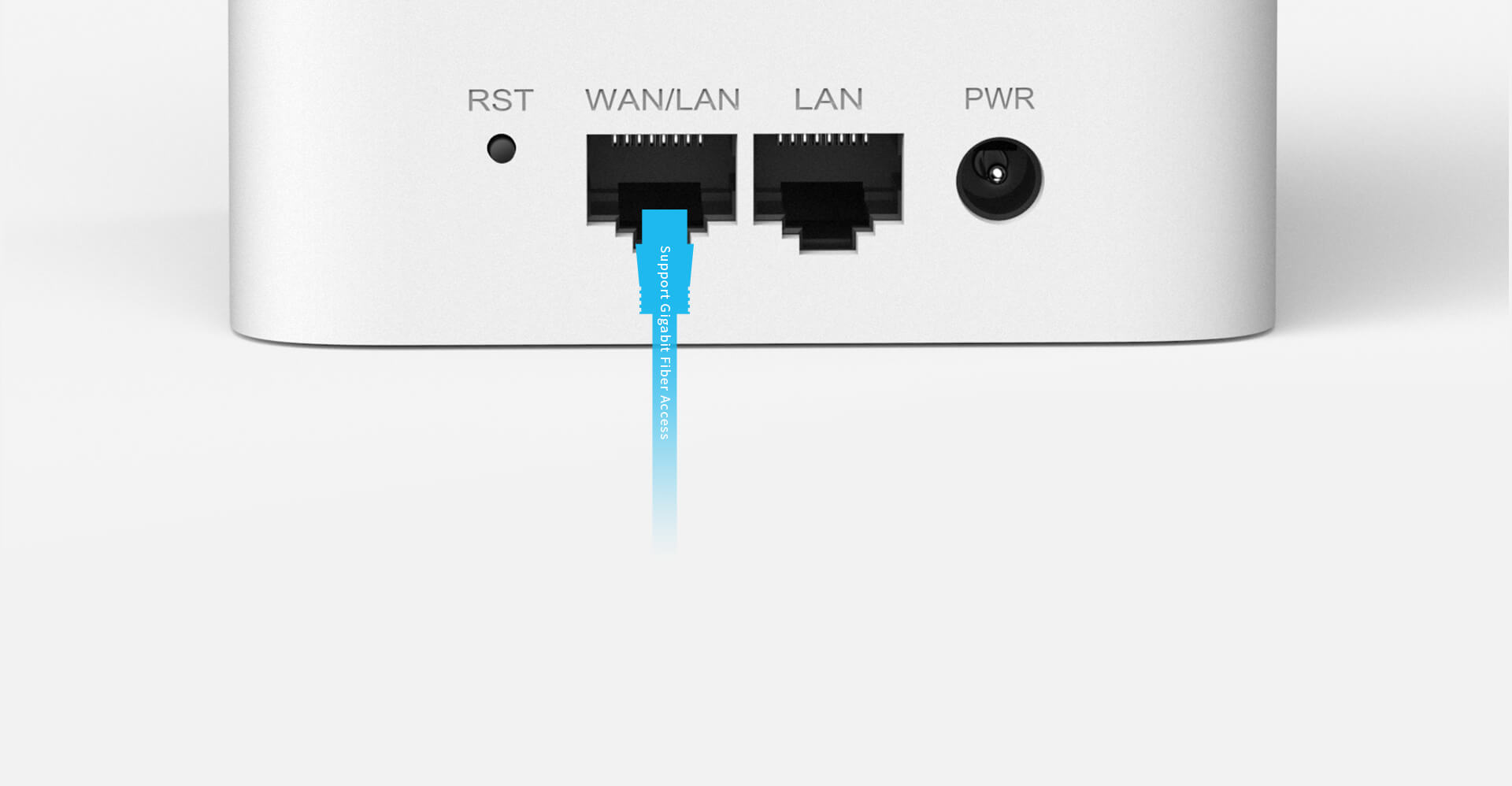

Ethernet Interface2 x 10/100/1000Mbps RJ45 ports per node
Antenna2 x Internal antenna
Button1 x Reset Button
PowerInput: 100-240V—50/60Hz, 0.6A
Output: 12V1A
Dimension91 x 91 x 93mm (3.58 x 3.58 x 3.66 in.)
LED Indicator1 x Tri-color LED
Indicator(Green,Yellow,Red)
Wireless StandardIEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
Wireless roamingComply with IEEE802.11k/v/r
Mesh network StandardIEEE802.11s
Rate2.4GHz: 300Mbps
5GHz: 867Mbps
Frequency2.4~2.4835GHz
5.15~5.25GHz
5.72~5.85GHz
Transmission PowerCE:
<20dBm(2.4G)
<23dBm(5G)
Basic FeaturesSSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering
Wireless SecurityWPA-PSK/WPA2-PSK(default)
Operating ModeRouter Mode,Bridge Mode
Internet Connection TypePPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP ServerDHCP Server, DHCP Client List
Virtual ServerPort Forwarding, UPnP
Parental ControlClient Filter
FirewallForbid TCP/UDP flood attack
VPNPPTP/L2TP/IPsec pass through
DNSSupport manually setting DNS server
Special FeaturesSmart QoS (Gaming, Video & Audio, Download)
OthersAuto-sensing internet connection
Support App management and Remote management
Guest Network
Firmware upgrade online
Operation Temperature0 ~ 40 ℃
Storage Temperature-40 ~ 70 ℃
Operating Humidity10%~90% RH non-condensing
Storage Humidity5%~90% RH non-condensing
APP installationAvailable in iOS 8.0 or later, Android 4.0 or later
CertificationCE, FCC, RoHS,EAC,IC
Package ContentsMesh5 x 3, Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x 1
