How to setup the router for Static IP internet connection mode

Product line: Wireless    Model number:FH330

There are three internet connection modes for the router. This article will guide you how to setup the router for Static IPmode and the steps as below.

Note: If you have no idea about what is the internet connection type and the accounts please call your ISP for them.

Part 1: Connect the devices

Part 2: Configure your computer

Part 3: Setup the router

Part 4: Check whether you can access internet

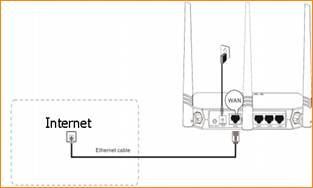

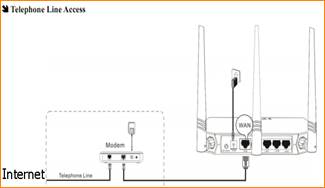

Connect the modem with the WAN port of the router, and then connect your computer with one of the LAN ports by a cable.



Note: after connection the SYS light should be blinking, the WLAN light should be on or blinking, the WAN light should be on or blinking.



1 Click on Network Connection Icon on the system bar, then click on Open Network and Sharing Center.

2 Click on Change adapter settings.

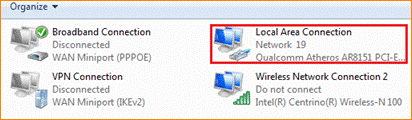

3 Right click on Local Area Connection, then choose thePropertiesoption.

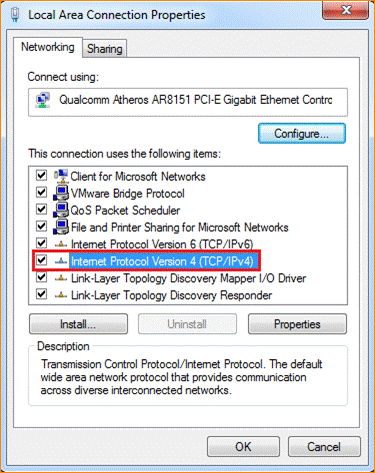

4 Double click on Internet Protocol Version 4(TCP/IPv4)

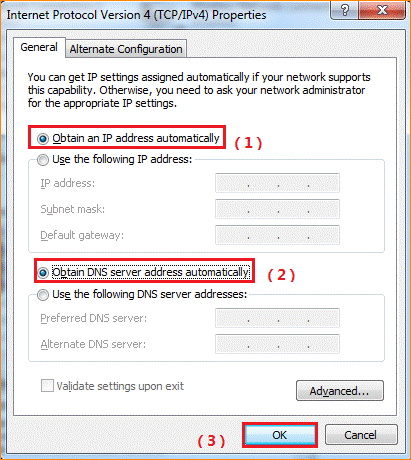

5 Choose Obtain an IP address automatically andObtainDNS server address automatically and then click OK.

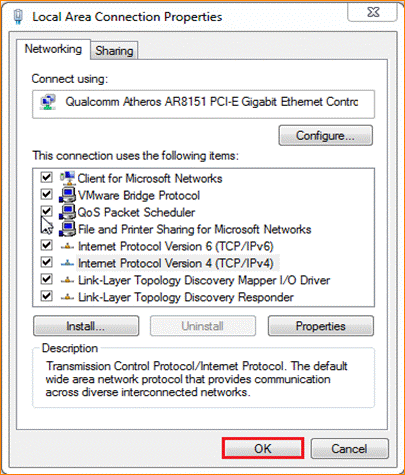

6 Also click onOK on the first Local Connection Properties window.

1Open a browser then type192.168.0.1 in the Address bar, click on Enter.

2 Type the Username and Passworddefault: adminin the bars then click on the Login button to login the setting page.

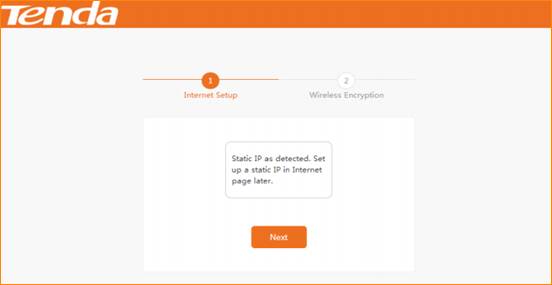

3 If the Setup Wizard detects that your Internet connection is Static IP,you will see the figure below:

Click Next to go forward.

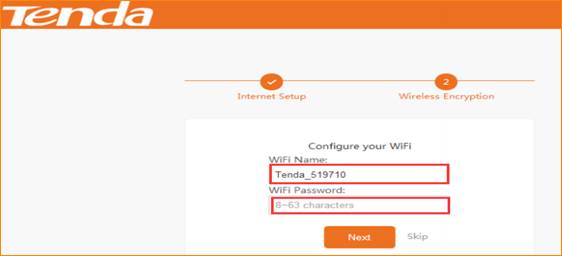

4 You can secure your wireless network on this page. The default Wi-Fi Name can be seen here on the Router’s label.

1.Change the WiFi Name to your custom name for easy recognition.

2.Customize a WiFi password in the WiFi Password field,and click Next.

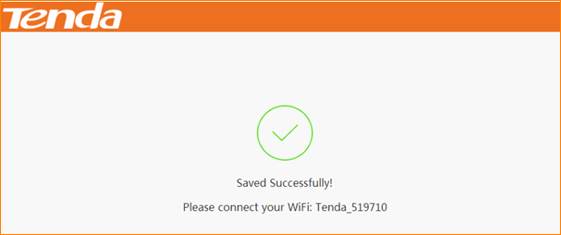

The page below will appear and hold for three seconds, and you will be directed to the Static IP setup page.

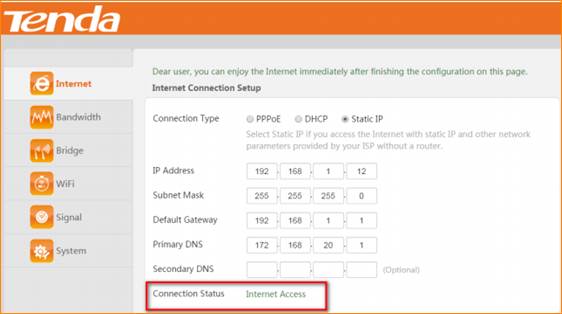

5. Input the Static IP info your ISP gave you, and click OK to save and active your settings.

1 Check the Connection Status, if it shows Internet Access, it indicates that you can access the Internet.
