How to setup the router for Static IP internet connection mode

Product line: Wireless    Model number: FH1206

There are three internet connection modes for the router. This article will guide you how to setup the router for Static IP mode and the steps as below.

Note: If you have no idea about what is the internet connection type and the accounts please call your ISP for them.

Part 1: Connect the devices

Part 2: Configure your computer

Part 3: Setup the router

Part 4: Check whether you can access internet

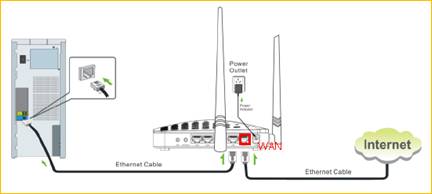

Connect the modem with the WAN port of the router, and then connect your computer with one of the LAN ports by a cable.

Note: after connection the SYS light should be blinking, the WLAN light should be on or blinking, the WAN light should be on or blinking.



1 Click on Network Connection Icon on the system bar, then click on Open Network and Sharing Center. (Here is for win7, other computer please click HERE.)

说明: 无线信号.png

2 Click on Change adapter settings.

说明: change.png

3 Right click on Local Area Connection, then choose the Properties option.

说明: local.png

4 Double click on Internet Protocol Version 4(TCP/IPv4)

说明: IP4.png

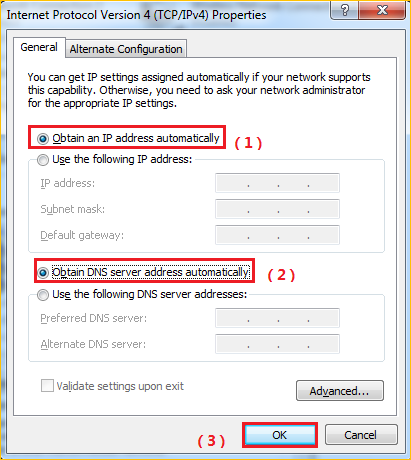

5 Choose Obtain an IP address automatically and Obtain DNS server address automatically and then click OK.

说明: obtain IP.png

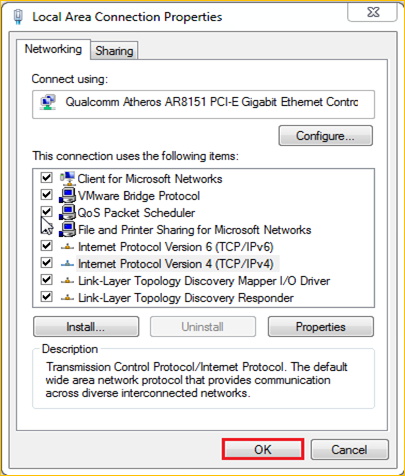

6 Also click on OK on the first Local Connection Properties window.

说明: OK.png

1 Open a browser then type 192.168.0.1 in the Address bar, click on Enter.

说明: C:\Users\Jane Lee\Desktop\N301做FAQ\browser.PNG

Note: if you cannot login the management page, please click HERE.

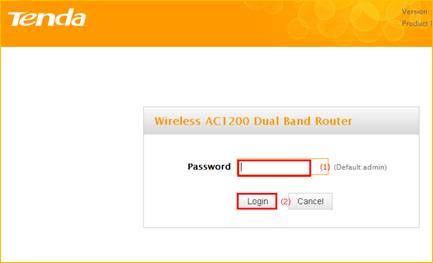

2 Type the Username and Password as admin in the bars then click on Login to login the setting page of the router.

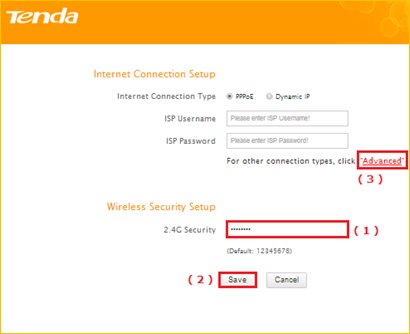

2 Set a 2.4G Security for the wireless security, click on Save to save the setting, and click on Advanced on the right of the page to login the advanced setting page.

说明: Static IP.tif

Note: the 2.4G Security should be at least 8 characters.

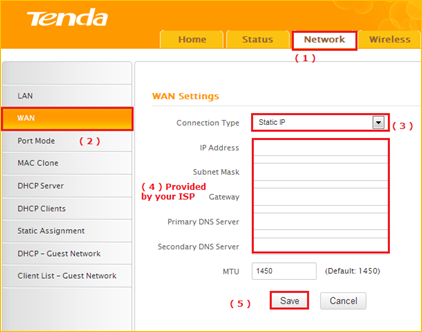

3 Click on the Network then click on the WAN option on the left of the page, then open the Dropdown Menu of the Connection Type then choose the Static IP option, after that type the accounts that provided by your ISP then click on OK to save the settings.

说明: Static IP.tif

Note: type the Secondary DNS Server as 8.8.8.8 if your ISP does not provide it.

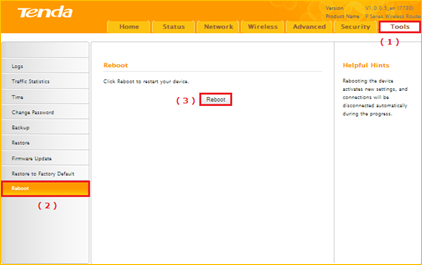

4 After setting, please click on Tools, and click on Reboot then hit on the Reboot button to reboot the router for refreshing the device info.

说明: reboot.tif

说明: C:\Documents and Settings\ccx\桌面\3.png

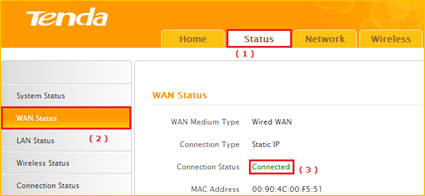

1 Click on Advanced to login the advanced setting page, then check the WAN Status if the Connection Status shows Connected that means you can access internet, please check.

说明: Static status.tif
