FH1206-How to setup the router for PPPOE internet connection mode?

How to setup the router for PPPOE internet connection mode

Product line: Wireless    Model number: FH1206

There are three internet connection modes for the router. This article will guide you how to setup the router for PPPOE mode and the steps as below.

Note: if you have no idea about the internet connection type and the accounts please call your ISP for then.

Part 1: Connect the devices

Part 2: Configure your computer

Part 3: Setup the router

Part 4: Check whether you can access internet

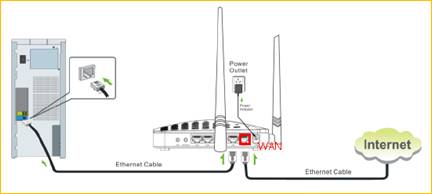

Connect the modem with the WAN port of the router, then connect your computer with one of the LAN ports of the router by a cable.

Note: After connection the SYS light should be blinking, the WLAN light should be on or blinking, the WAN light should be on or blinking.


1 Click on Network Connection Icon on the system bar, then click on Open Network and Sharing Center. (Here is for windows 7, other operating system please click HERE.)

说明: 无线信号.png

2 Click on Change adapter settings.

说明: change.png

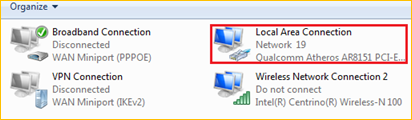

3 Right click on Local Area Connection, then choose Properties option.

说明: local.png

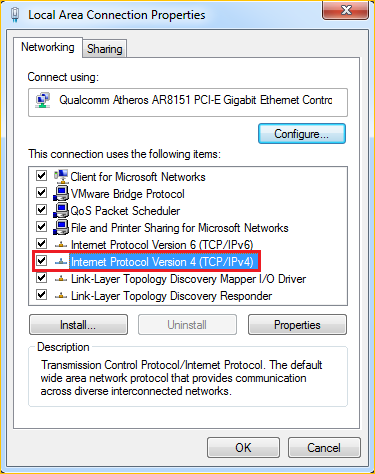

4 Double click on Internet Protocol Version 4(TCP/IPv4)

说明: IP4.png

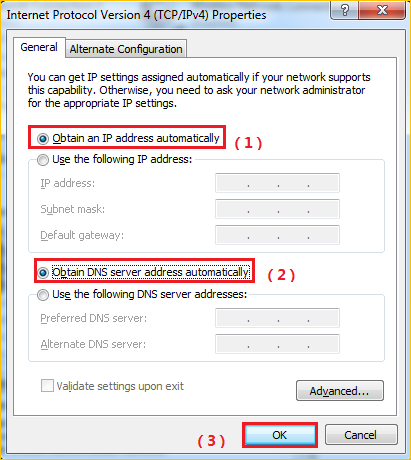

5 Choose Obtain an IP address automatically and Obtain DNS server address automatically and then click OK.

说明: obtain IP.png

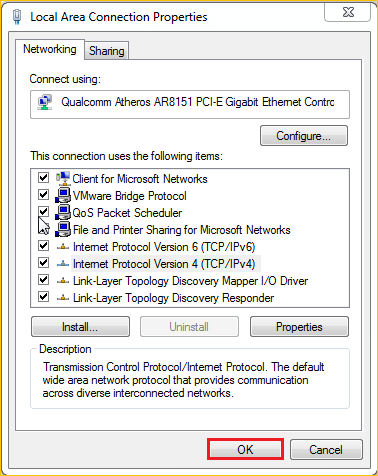

6 Also click on OK on the first Local Connection Properties window

说明: OK.png

1 Open a browser then type in the Address bar, click Enter.

说明: C:\Users\Jane Lee\Desktop\N301做FAQ\browser.PNG

Note: if you cannot login the management page, please click HERE.

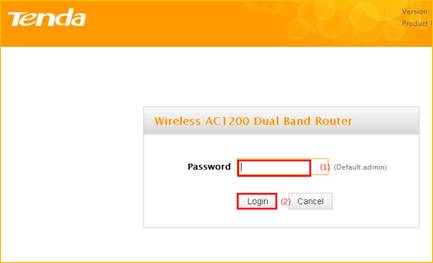

2 Type the Password as admin, and then click on Login button to login the setting page.

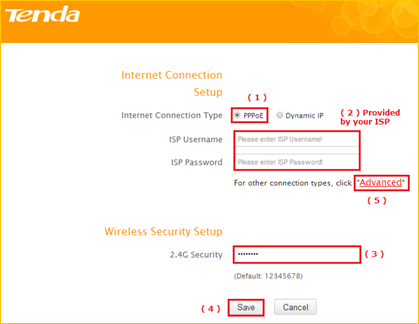

3 Choose the PPPOE option, then type the ISP Username and ISP Password in the correct bars, then set a 2.4G Security as you want, click on Save to save the settings, then click on Advanced to login the advanced setting page.

说明: PPPOE.tif

Note: the 2.4G Security should be at least 8 characters.

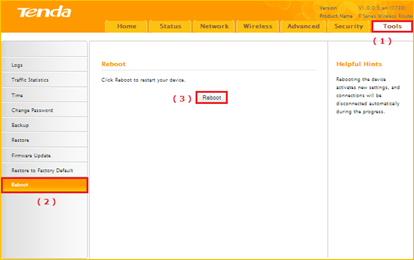

4 Click on Tools, then click on Reboot, and then press the Reboot button to reboot the router for refreshing the device info.

说明: reboot.tif

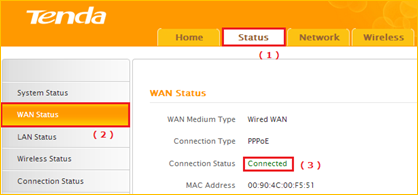

Type the User Name and Password as admin then Click on Advanced to login the advances setting page, and then check on the Status if the WAN Status shows Connected that means you can access internet, please check.

说明: PPPOE Status.tif


1,When the Connection Status show Disconnect, it means that there are some problem with the WAN Connection. please check hardware connection.

2, When the Connection Status Show Connecting, please try the steps as below

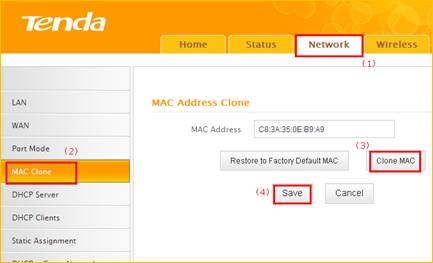

a, click networkàMAC CloneàClone MAC to clone your computer’s mac address to the router’s WAN port, then click Save to save the setting and click Reboot.

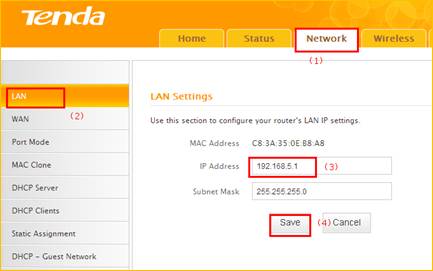

b, click NetworkàLANàIP address, change it to, click Save to save the setting and the router will reboot automatically.


C, if the Connection Status is still Connecting, please reboot the modem and router together.
